Attaching an External Numeric Keypad or a Mouse
Attaching an External Numeric Keypad or a Mouse
Warning:
When you connect a mouse other
than IBM PS/2 Miniature Mouse,
turn off the computer.

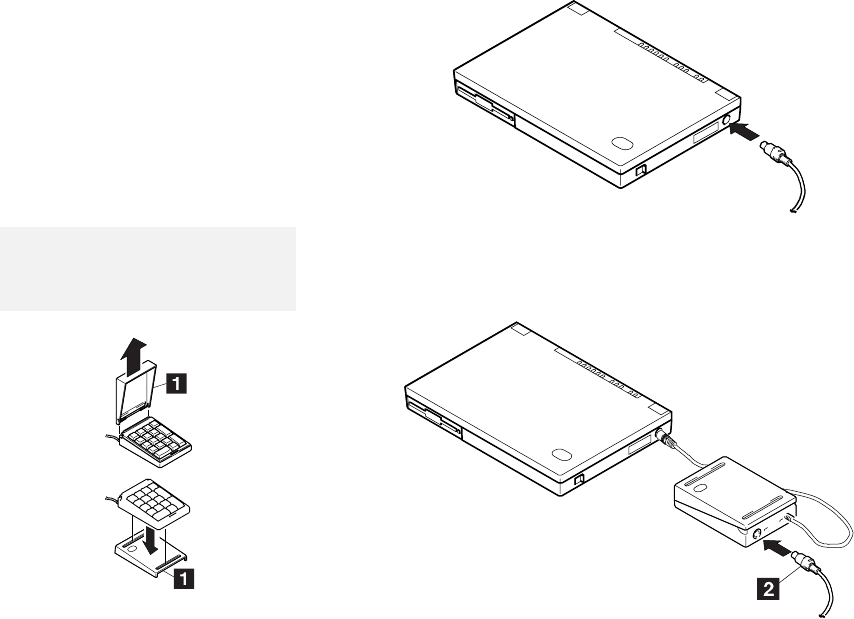

An external numeric keypad or a mouse can be attached directly to
the connector on the right side of the computer. You can use both
the IBM PS/2 Mouse and TrackPoint III as a pointing device. The
PS/2 Mouse is plugged into the external input device connector of
the computer and functions normally when the TrackPoint III is not
actually moving the cursor.
Note:
You can remove the keypad cover
1 and use it as a stand for the
keypad.
If you want to use the external numeric keypad and mouse at the
same time, first connect the keypad cable to the computer; then
connect the mouse cable 2 to the connector at the rear of the
keypad.
Chapter 6. Installing and Removing Options 159
