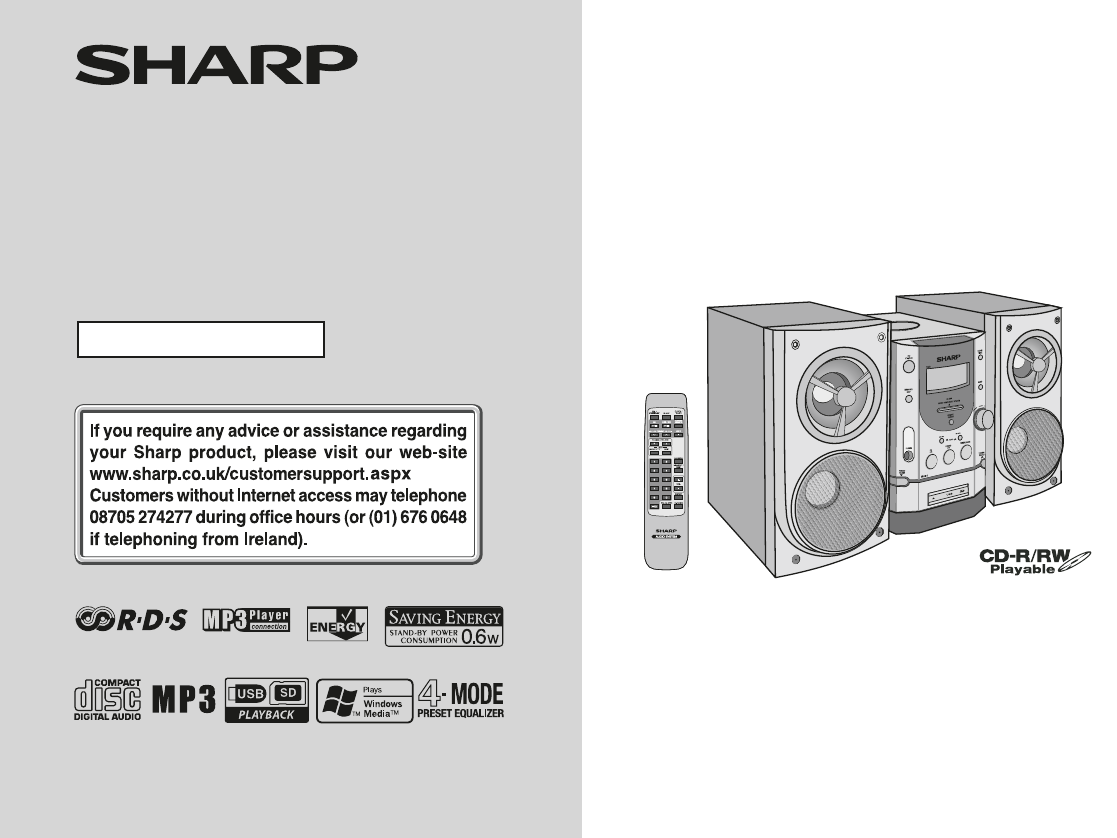

04/12/15 XL-UH4HE_FRONT uk.fmThank you for purchasing this SHARP product. To obtain the best performance from this product, please read thismanual car

10 XL-UH4H Preparation for Use System connections (continued)  Aerial connection Supplied FM aerial: Connect the FM aerial wire to the FM 75 OHMS s

11 XL-UH4H Preparation for Use  AC power connection After checking all the connections have been made correctly, plugthe AC power lead of this unit

12 XL-UH4H Preparation for Use Remote control  Battery installation Precautions for battery use: Replace all old batteries with new ones at the sam

13XL-UH4HBasic OperationGeneral control  To turn the power onPress the ON/STAND-BY button to turn the power on. Auto power off functionIn the stop

14XL-UH4HBasic OperationSetting the clockIn this example, the clock is set for the 24-hour (0:00) display.To confirm the time display:Press the CLOCK/

15XL-UH4HCD or MP3/WMA disc PlaybackListening to a CD or MP3/WMA disc This system can play back a standard CD, CD-R/RW in the CD formatand CD-R/RW wit

16XL-UH4HCD or MP3/WMA disc PlaybackListening to a CD or MP3/WMA disc (continued)To interrupt playback: Press the CD / button during playback. 

17XL-UH4HCD or MP3/WMA disc PlaybackAdvanced CD or MP3/WMA disc playback  Direct track searchBy using the direct search buttons, the desired tracks

18XL-UH4HCD or MP3/WMA disc PlaybackAdvanced CD or MP3/WMA disc playback (continued)  Repeat play (REMOTE CONTROL ONLY)Repeat play can play single tr

19XL-UH4HCD or MP3/WMA disc Playback  Programmed playTo cancel the programmed play mode:Press the button or STOP button on the remote control. Th

2XL-UH4HImportant InstructionSpecial notesNOTES FOR USERS IN THE U.K. AND IRELANDThe mains lead of this product is fitted with a non-rewireable(moulde

20XL-UH4HCD or MP3/WMA disc PlaybackAdvanced CD or MP3/WMA disc playback (continued) Programmed play (Folder mode)To cancel the programmed play mode:

21XL-UH4HCD or MP3/WMA disc PlaybackMP3/WMA folder mode (only for MP3/WMA files) To playback MP3/WMA (Windows Media Audio) fileThere are many music sit

22XL-UH4HCD or MP3/WMA disc PlaybackMP3/WMA folder mode (only for MP3/WMA files) (continued)  Procedure to playback MP3/WMA discTo playback CD-R/RW.No

23XL-UH4HUSB Memory PlaybackListening to USB mass storage device / MP3 player Note:This product is not compatible with MTP and AAC file systems.Note:T

24XL-UH4HUSB Memory PlaybackTo remove USB memory device Notes: SHARP will not be held liable for the loss of data whilst the USBmemory device is con

25XL-UH4HSD Memory PlaybackNote:To pause playback:Press the USB/SD / button.To remove SD memory device Notes: SHARP will not be held liable for

26XL-UH4HSD Memory PlaybackAdvanced USB/SD playback Programmed play 1 Whilst in the stop mode, press the MEMORY/DISP buttonto enter the programming

27XL-UH4HSD Memory PlaybackTo cancel the programmed play mode:Press the button or STOP button on the remote control. The"MEMORY" indica

28XL-UH4HSD Memory PlaybackAdvanced USB/SD playback (continued) Repeat play (REMOTE CONTROL ONLY)Repeat play can play single track and all track sequ

29XL-UH4HRadioListening to the radio  TuningNotes: When radio interference occurs, auto scan tuning may stopautomatically at that point. Auto scan

3XL-UH4HImportant Instruction WARNINGS  When the ON/STAND-BY button is set at STAND-BY position,mains voltage is still present inside the unit. When

30XL-UH4HRadioListening to the radio (continued)Note:The backup function protects the memorised stations for a fewhours should there be a power failur

31XL-UH4HAdvanced FeaturesTo stop the ASPM operation before it is complete:Press and hold the RDS (ASPM/PTY) button for more than 3seconds whilst it i

32XL-UH4HAdvanced FeaturesUsing the Radio Data System (RDS) (continued) To show Radio Data System signals on displaySelect an FM station with Radio D

33XL-UH4HAdvanced FeaturesNotes: If the display has stopped flashing, start again from step 2. If theunit finds a desired programme type, the corresp

34XL-UH4HAdvanced FeaturesUsing the Radio Data System (RDS) (continued)LIGHT M Classical music for general, rather than specialistappreciation. Exampl

35XL-UH4HAdvanced FeaturesTimer and sleep operation Timer playbackBefore setting timer:Continued to the next page1 Check that the clock is set to the

36XL-UH4HAdvanced FeaturesTimer and sleep operation (continued)To cancel Timer function:Press the SLEEP button for 2 seconds. The "TIMER" in

37XL-UH4HAdvanced Features Sleep operationThe radio, compact disc and USB/SD can all be turned off automat-ically.To confirm the remaining sleep time

38XL-UH4HAdvanced FeaturesEnhancing your system  Headphones Before plugging in or unplugging the headphones, reduce thevolume. Be sure your headpho

39XL-UH4HReferences Remote control Tuner CondensationSudden temperature changes, storage or operation in an extremelyhumid environment may cause co

4 XL-UH4H General Information Special Note Supply of this product does not convey a license nor imply any rightto distribute content created with thi

40XL-UH4HReferencesTroubleshooting chart (continued) Before transporting the unitRemove the CD from the unit. Make sure there is no CD in the disctra

41XL-UH4HReferencesSpecificationsAs part of our policy of continuous improvement, SHARP reservesthe right to make design and specification changes for

MEMOMEMO 11/16/05, 4:41 PM1

MEMOMEMO 11/16/05, 4:41 PM2

04/12/15 XL-UH4HE_BACK.fm92L01LUH400040 06G R MW 1SHARP ELECTRONICS (U.K) LTD.4 Furzeground Way, Stockley Park, Uxbridge, Middlesex, UB11 1EZSHARP CO

5 XL-UH4H General Information Precautions  General  Please ensure that the equipment is positioned in a well-ventilatedarea and ensure that there i

6 XL-UH4H General Information Controls and indicators  Front panel Reference page1. CD Compartment . . . . . . . . . . . . . . . . . . . . . . . .

7 XL-UH4H General Information  Display Reference page1. Memory Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19, 302. MP3/

8 XL-UH4H General Information Controls and indicators (continued)  Remote control Reference page1. Remote Control Transmitter . . . . . . . . . . .

9 XL-UH4H Preparation for Use System connections Left speakerRight speaker Speaker connection (see page 10)AM loop aerialFM aerialMake sure to unpl
