General Information

- Controls and Indicators -

E-7

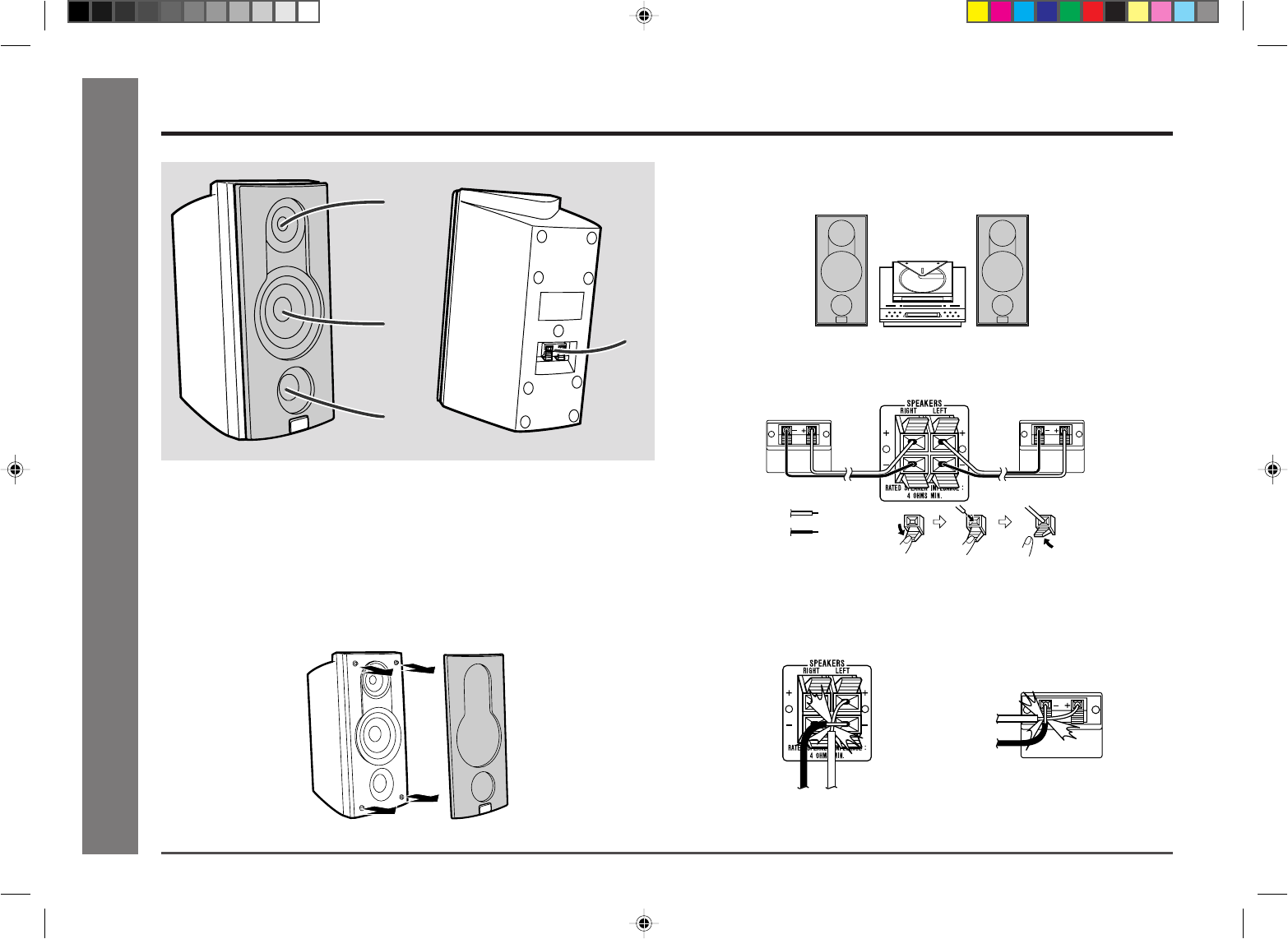

■ Speaker System

01. Tweeter

02. Woofer

03. Bass Reflex Duct

04. Speaker Terminals

Make sure nothing comes into contact with the speaker diaphragms when you re-

move the speaker grilles.

Controls and Indicators (continued)

Placing the speaker system:

There is no distinction between the right and the left speakers.

Left speaker Right speaker

■ Speaker connection

Connect the black wire to the minus (-) terminal and the red wire to the plus (+)

terminal.

Caution:

● Connect the speaker wires to the speakers first, then to the unit.

● Use speakers with an impedance of 4 ohms or more, as lower impedance speak-

ers can damage the unit.

● Do not mistake the right and the left channels. The right speaker is the one on the

right side when you face the unit.

● Do not let the bare speaker wires touch each other.

Incorrect Incorrect

Black

Red

Black

*07-E02-07-MD9000H(SEEG) 01.4.19, 3:07 PM7
