Useful Features

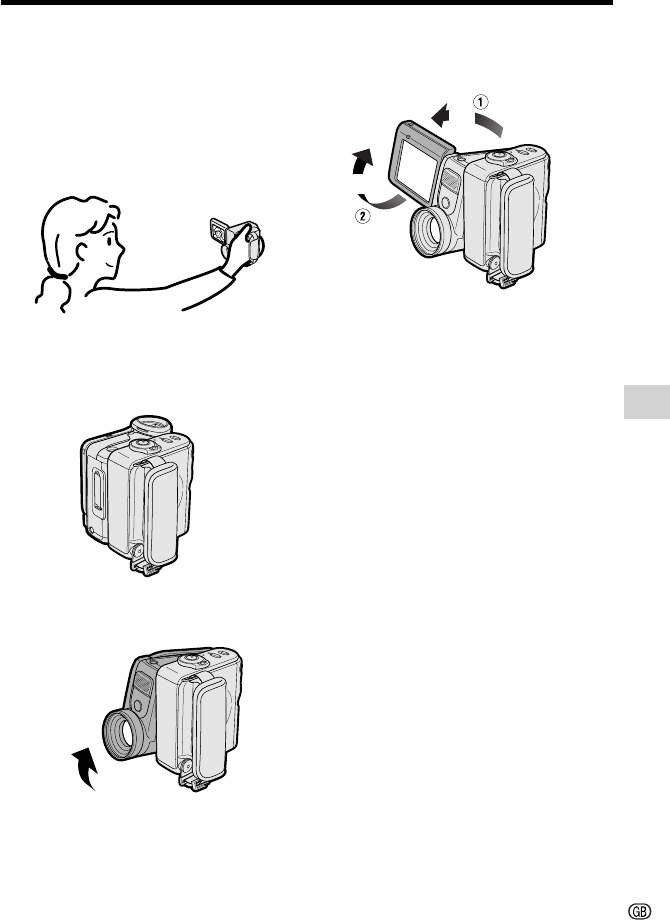

Self recording with reversed

grip

Available mode:

Tape Camera

Rotate the grip 105° and the LCD monitor

180° vertically so that you can record

yourself while holding the grip.

3 Open the LCD monitor to a 90° angle

to the camcorder body (1), and then

rotate it 180° vertically (2).

4 Set the Media Selection switch to V.

5 Set the Power switch to v.

6 Begin recording.

Notes:

• Do not rotate the monitor section to the self

recording position during recording or

playback.

• During self recording with reversed grip, the

mode or menu screen cannot be displayed.

• All of the manual settings are set to AUTO

and some other settings will set to OFF in self

recording with reversed grip.

• You may experience image noise when using

self recording.

• To operate self recording with reversed grip

correctly, make sure to turn the grip and the

lens section so that the Record Start/Stop

button and the tripod socket face upward,

and the lens faces toward you. The I

indicator will appear.

• Be sure that the LCD monitor rotation is

exactly 180°, otherwise the image recorded

will be rotated 180° upside-down.

• In self recording with reversed grip in Card

Camera mode, the still images will be

recorded rotated 180° upside down. The J

indicator will appear in this case.

• The viewfinder does not work in self

recording with reversed grip.

• It is recommended to set the LED video light

to “OFF” in self recording.

1 Turn the camcorder downward as

shown below.

2 Rotate the lens section 105° vertically

as shown below.

180°

90°

105°

VL-Z500S-GB-038-048 04.2.9, 3:21 PM45
