LOADING PAPER IN A TRAY

Loading paper in a tray

A maximum of 500 sheets of paper from size A5 to size A4 (5-1/2" x 8-1/2" to 8-1/2" x

14") can be loaded in trays 1 and 2.

A maximum of 500 sheets of paper from size B5 to size A4 (7-1/4" x 10-1/2" to 8-1/2" x

14") can be loaded in trays 3 and 4.

For detailed information, see "TRAY SETTINGS FOR TRAY 1 TO 4" in "Chapter 1 -

BEFORE USING THE MACHINE" in the Operation Guide.

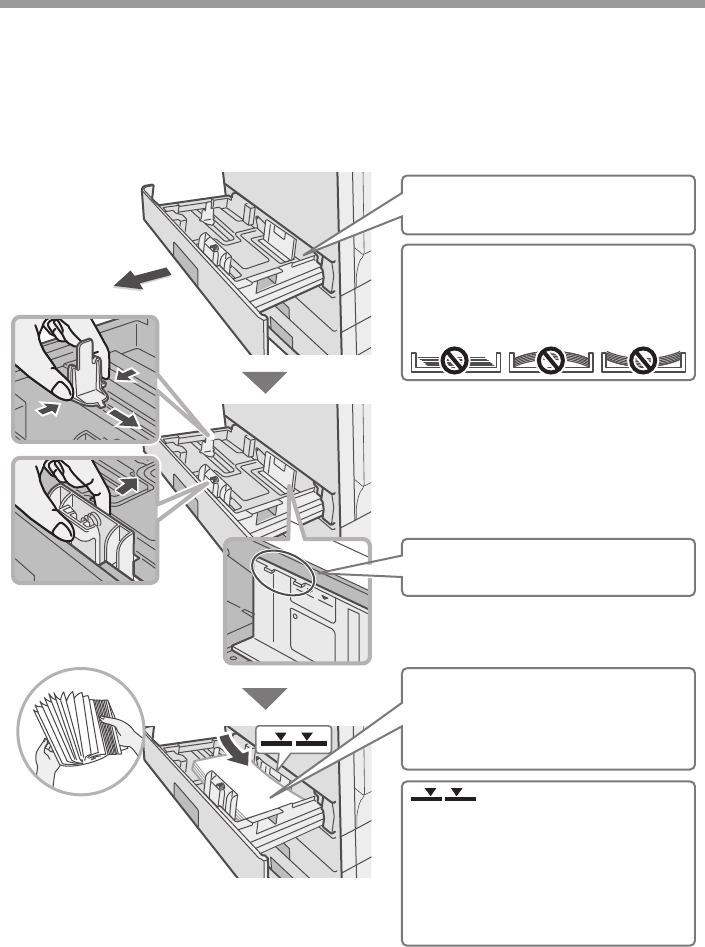

Gently pull out the paper tray. If

paper remains in the tray, remove it.

Move the two guides on the tray.

Load the paper so that it is not as

shown below when viewed from the

front and side of the machine.

The loaded paper should not go

higher than these protrusions.

Insert the paper with the print side

face up.

Fan the paper well before inserting

it.

Indicator line

The indicator line indicates the

maximum height of the paper

that can be loaded in the tray.

When loading paper, make sure

that the stack is not higher than

the indicator line.
