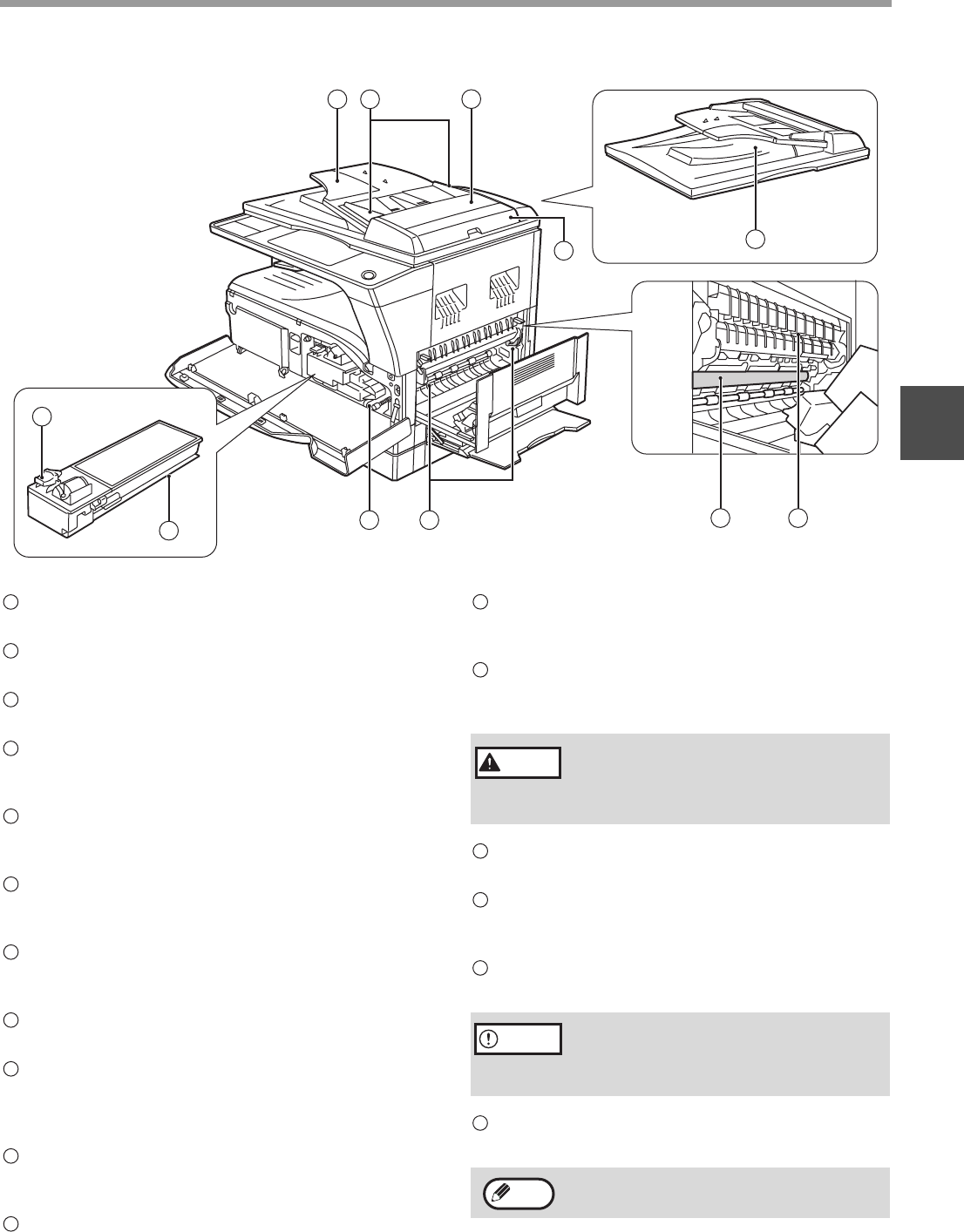

BEFORE USING THE MACHINE

Document cover (when installed)

Open to make a copy from the document glass.

Side cover

Open to remove misfed paper.

Side cover handle

Pull to open the side cover.

Bypass tray guides

Adjust to the width of the paper when using the

bypass tray.

Bypass tray

Special paper (heavy paper or transparency film)

can be fed from the bypass tray.

Bypass tray extension

Pull out when feeding large paper such as A3 and

B4 (11" x 17" and 8-1/2" x 14").

Toner cartridge lock release lever

To replace the toner cartridge, pull out the toner

cartridge while pushing on this lever.

Toner cartridge

Contains toner.

Document feeder tray (when the SPF/RSPF is

installed)

Place the original(s) that you wish to scan face up

here. Up to 40 sheets can be placed.

Original guides (when the SPF/RSPF is

installed)

Adjust to the size of the originals.

Feeding roller cover (when the SPF/RSPF is

installed)

Open to remove misfed originals.

Right side cover (when the SPF/RSPF is

installed)

Open to remove misfed originals.

Fusing unit release levers

To remove the paper misfed in the fusing unit, push

down on these levers and remove the paper.

Roller rotating knob

Rotate to remove misfed paper.

Exit area (when the SPF/RSPF is installed)

Originals exit the machine here after

copying/scanning when the SPF/RSPF is used.

Photoconductive drum

Images are formed on the photoconductive drum.

Fusing unit paper guide

Open to remove misfed paper.

21 22

2526

28 29

The fusing unit is hot. Do not touch

the fusing unit when removing

misfed paper. Doing so may cause a

burn or injury.

Do not touch the photoconductive drum

(green portion) when removing the misfed

paper. Doing so may damage the drum and

cause smudges on copies.

The model name is on the front cover of the

machine.

Warning

Caution

Note
