DK-CL5P

General Information

Controls and indicators (continued)

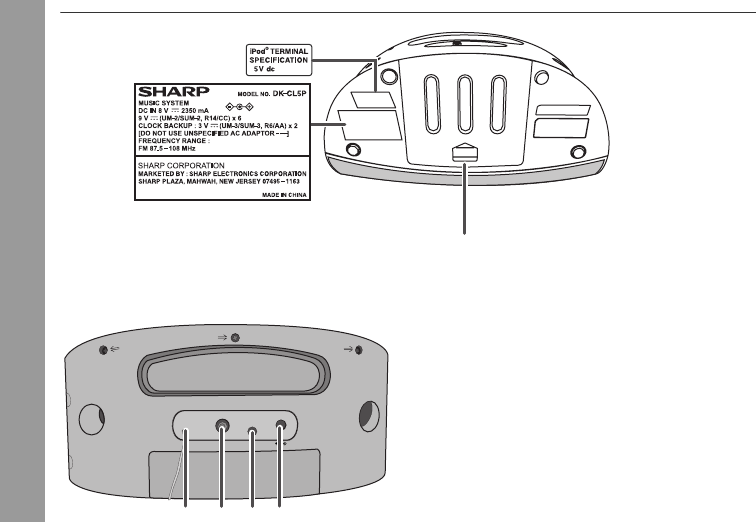

■ Bottom view

Reference page

1. Battery Compartment . . . . . . . . . . . . . . . . . . . . . . . 11

■ Rear panel

Reference page

1. FM Antenna Wire (fixed). . . . . . . . . . . . . . . . . . . . . . 25

2. Video Out Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

3. Audio In Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

4. DC Input Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

The spec label (*)

(*) Label is located at the bottom of the unit.

The spec label illustration may be different

from the actual label used.

The iPod rating label (*)

DC IN 8V

AUDIO IN

VID EO OUT

FM ANTENNA
