1-4

System Composition

Under below is a system configuration and its peripheral devices.

System Composition

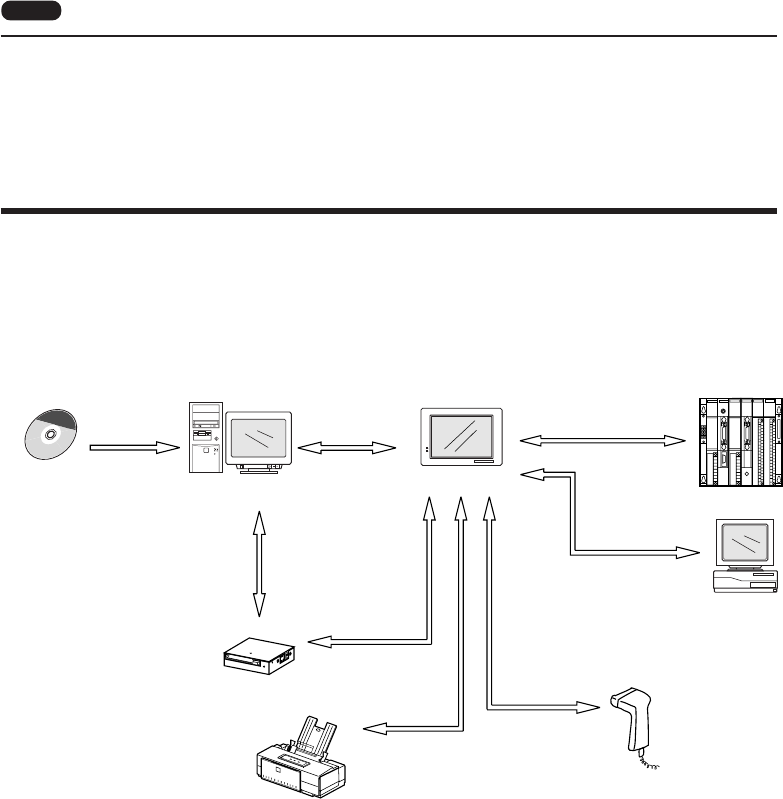

The following illustration shows possible system configurations using ZM-62E.

Personal Computer (PC)

ZM-62E

ZM-71SE

RS-232C/RS-422

Screen edit software

for ZM series

Creating screens

RS-232C/RS-422

ZM-80C

ZM-80PC

Card Recorder

ZM-1REC

ZM-80BC

ZM-1REC Cable

Transferring

screen data

Transferring

screen data

Memory manager

/Data logging

Transferring

screen data

Printer Cable

Printer

Cable

Barcode Reader

During operation

(Link communication)

During operation

(Universal serial

communication)

Link Unit

Universal-purpose

computer

RESET

disc

POWER

RUN

1 System Composition

1 2 3 4 5 6 7 8 9 10 11 12 13 14 ... 67 68

User's Manual 1
Precautions 1 2
Precautions 2 2
Safety Precautions 3
Contents 4
Hardware 5
Specifications 5
Notes on Usage 7
Notes on Design 8
1 System Composition 9
Names of Components 12
Unit : mm 13
Mounting Procedure 14
1 Specifications 15
Display Specifications 16
Data Setting 17
Drawing Environment 18
Touch Panel Specifications 18
Interface Specifications 18
Compatible PLC for connection 19
Wiring of Power Supply 20
1 Serial Connector (CN1) 21
Wiring for Communication 22
Terminal Blocks of RS-422/485 23
Connection Style 24
1 : 1 Communications 25
Max. 500 m 26
<E.g.> 27
* Between a PLC and the ZM 28
(b) (c) (d) (e) 29
General Purpose Serial 32
Communication 32
Modular Jack 1 & 2 33
Setting of Dip Switches 34
Barcode Reader Interface 35
Printer Interface (CN2) 36
Please use this page freely 37
System Menu 38
Operation of Main Menu 39
Main Menu 40
I/O Test 40
A. Self-loop Test 41
Communication Port 42
B. Printer Check 44
C. Switch Check 44
D. Main Menu 44
Memory-Card 45
Data Selection Transfer 46
Work normally finished 47
2 Operation of Main Menu 48
Errors Caused on the ZM-62E 49
System Error 50
Editing & 51
Converting 51
Screen Editing of ZM-62E 52
Overlap No. 0 53
CONSIDERATIONS ON HARDWARE 55
ZM-61E ZM-62E 56
CONSIDERATIONS ON SOFTWARE 57
Converting Procedure 57
Cautions on conversion 58
ZM-71SE Ver. 1.3.0.0 or later 59
H 41 00 43 44 60
H 00 42 43 44 60
ZM-30 (ZM-61E) 61
(ZM-62E) 61
(ZM-61E) 62
Blinking 65
ZM-30 (ZM-61E) ZM 66
Version 1.0 68
1.0v 11.2007 68
