4-5

Removing a PC Card

1. Click the Unplug or Eject Hardware icon in the taskbar.

2. Click Stop xxxxx. Xxxx is your card name.

3. Click OK in Safe To Remove Hardware dialog box.

4. Push the eject button so that it sticks out from the side of the computer.

5. Push the eject card button straight into the chassis to force the card from the

slot.

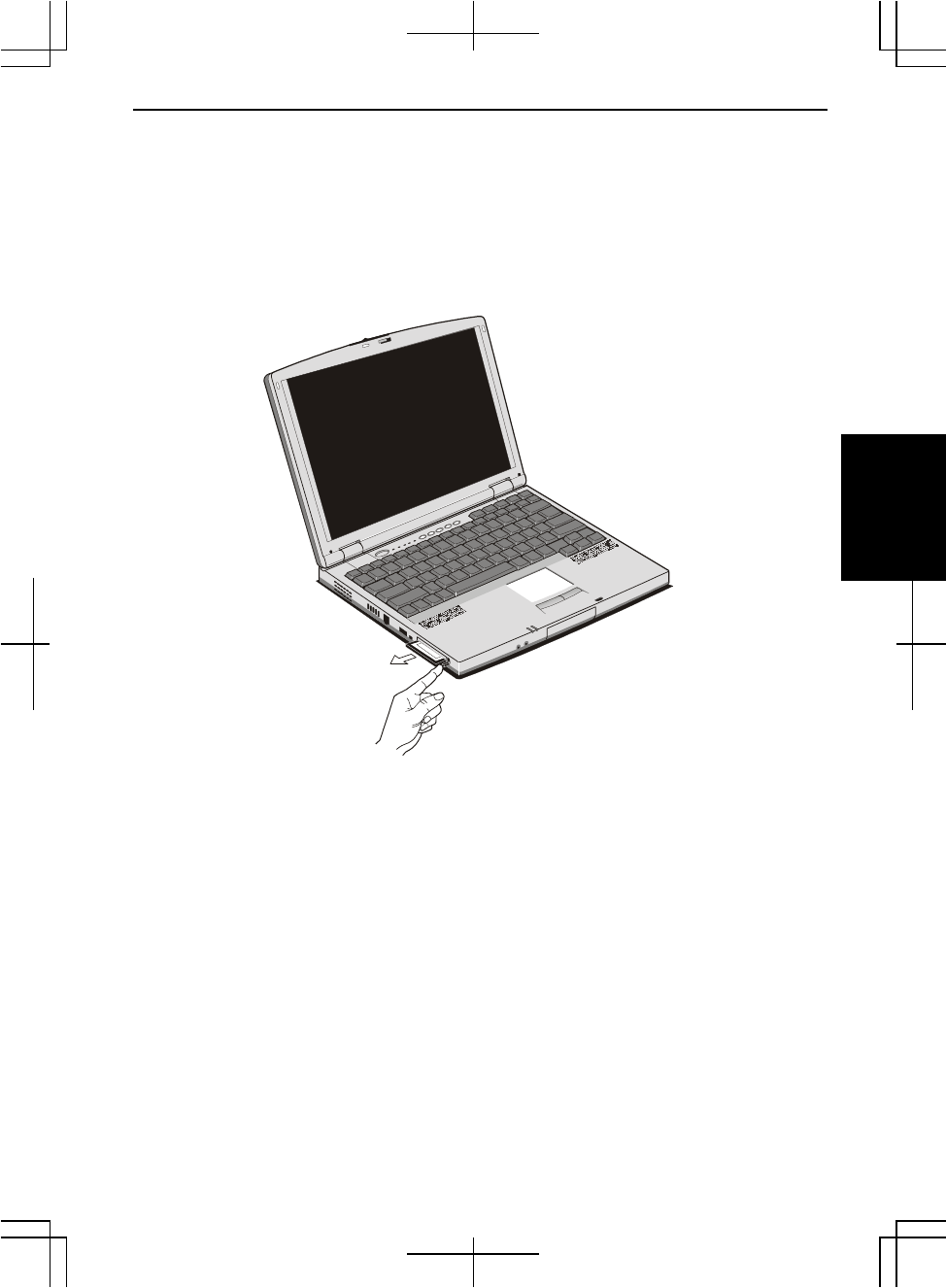

Push eject button straight into the

chassis to force the card from the slot

6. Remove the card; then, push the eject card button all the way into the computer

chassis for safekeeping.
