4-7

4

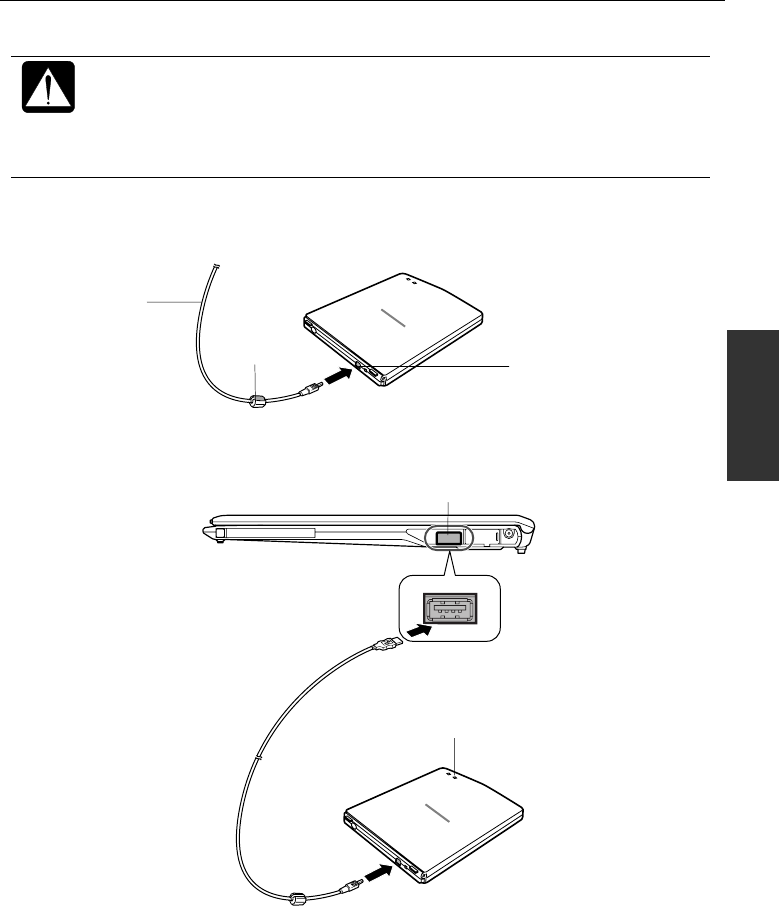

Connecting Optional External CD-ROM Drive Unit (CE-CD05)

• Do not place the CD-ROM drive unit on its side or upside down.

• Do not press on the CD-ROM drive unit. It may damage the drive or

cause malfunction.

• Do not place the AC adapter on the CD-ROM drive unit. It may cause

the drive to malfunction.

1. Connect the core side connector of the USB cable included in the optional

external CD-ROM drive unit to the cable connector of the drive unit.

2. Insert the USB connector of the cable into one of the USB ports of your

computer. The CD-ROM drive unit automatically turns on and the power

indicator lights up.

USB Port

Power Indicator

Cable Connector

USB Cable

Core
