Configuration M203

1

Installation

The M203 interface can be

installed easily and quickly.

There are two types of fixing

available.

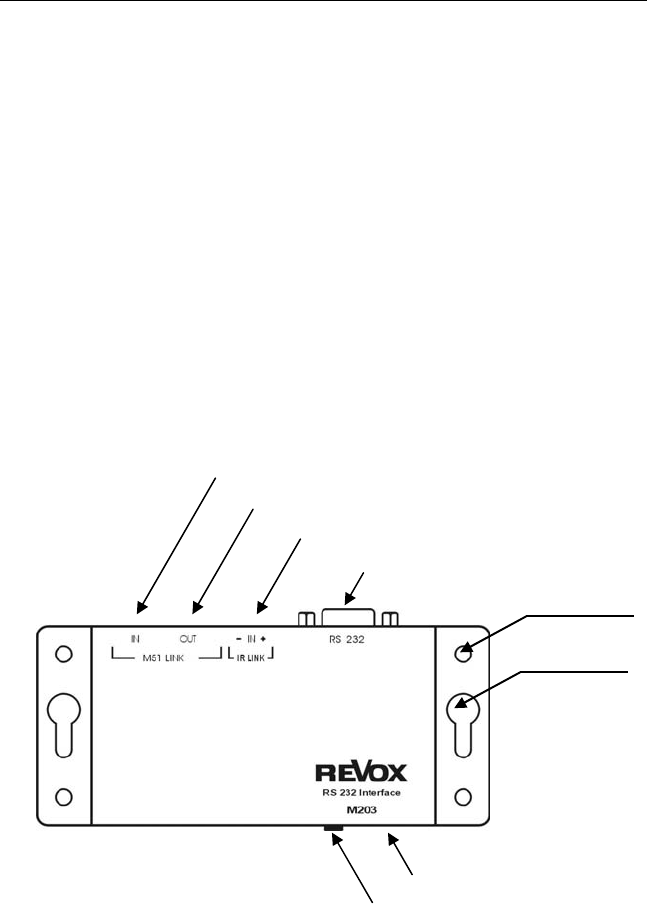

Connection plan

1) The four outside fixing holes

(

∅ 4,2 mm ) are used for a

permanent installation.

2) Revox recommends using the

two slots on the side for a

variable installation.

Serial interface activity display

Slotted hole

4 x 20 mm / ∅ 15 mm

Re:system (M51) resp. Re:connect

Further Re:connect products: M201, M202, etc

RS232 seriell interface

IR-/ wall-mounted remote control M204/ M218

Setup button

Fixing hole

∅

4,2 mm
