EP-308A/EP-308AS POS

Page 11

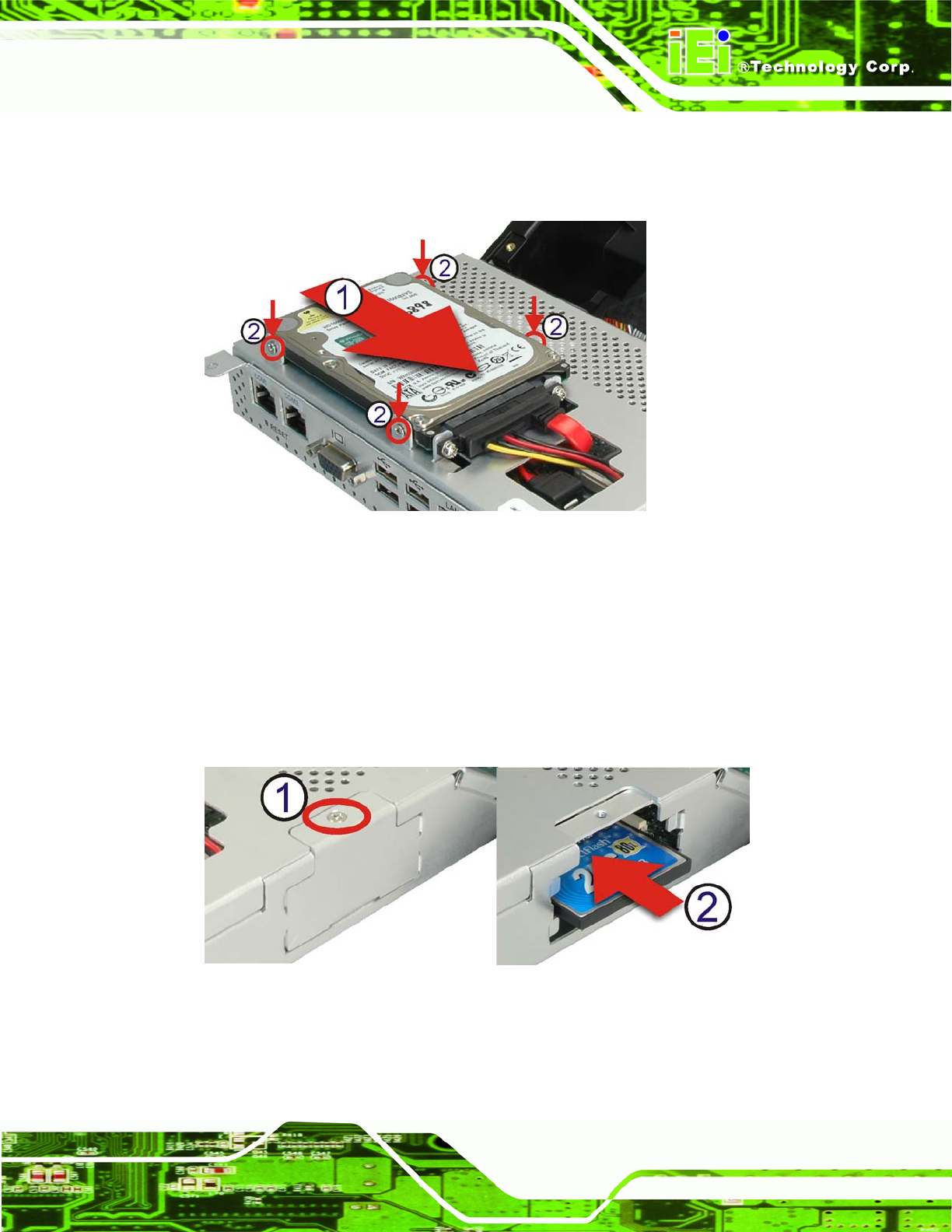

Step 1: Slice the hard drive on to connect with the SATA connector.

Step 2: Fasten the screws.Step 0:

Figure 2-2: Aluminum Back Cover Retention Screws

2.3.2 CompactFlash® Installation

This section covers the installation of the CompactFlash® card.

Step 1: Remove the screw that holds the CompactFlash® card slot cover is place.

Step 2: Install the CompactFlash® card in the slot indicated below.

Figure 2–3: CompactFlash® Install

Step 3: Replace the cover and fasten the screws.Step 0:
