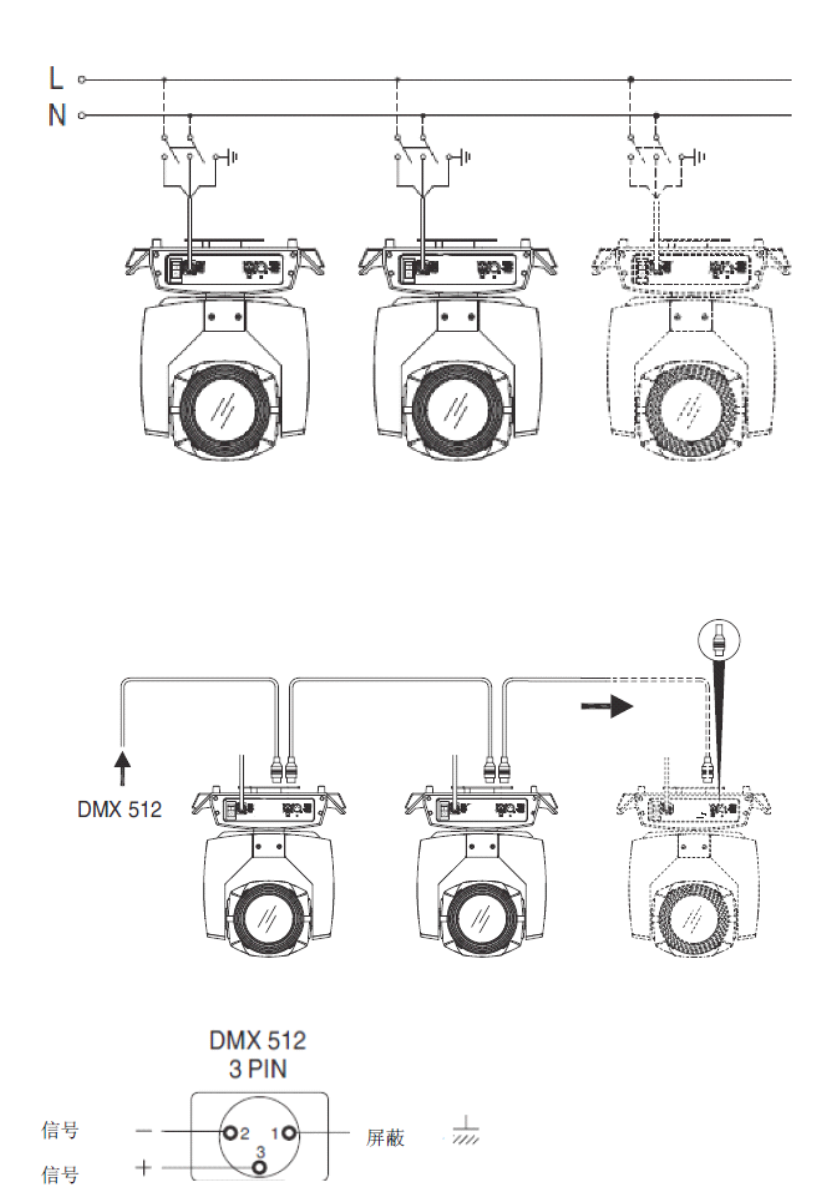

Figure 5: Connecting to

power

Figure 6 : Connecting to the control signal line ( DMX )

Note: Please use meets specifications shielded 2-pole twisted pair signal

lines, characteristic impedance of 120 ohms , do not use the microphone

Cable or other specified uses signal line. Terminal connection must use
