7

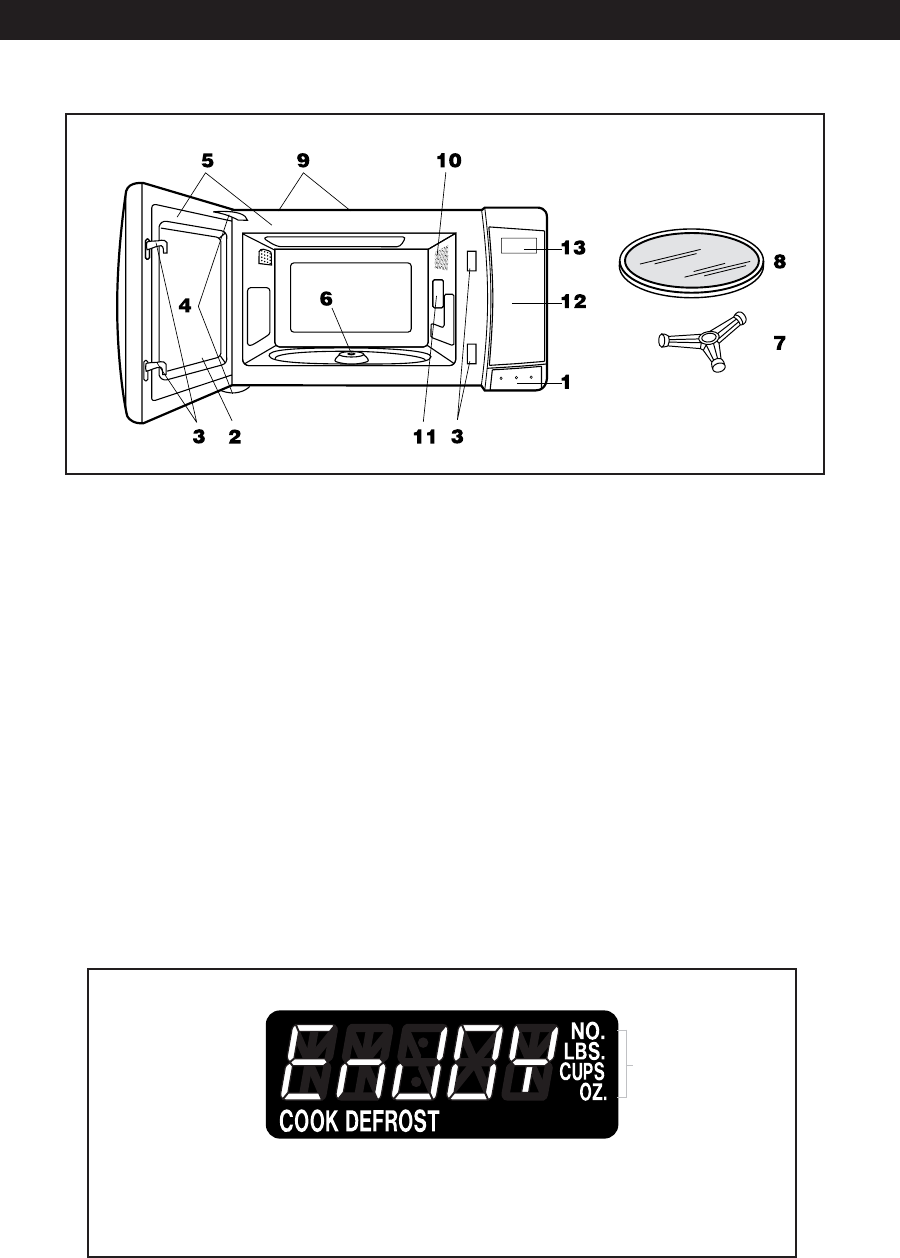

PART NAMES

MICROWAVE OVEN PARTS

1 One touch door open button

Push to open door.

2 Oven door with see-through window

3 Safety door latches

The oven will not operate unless the door is

securely closed.

4 Door hinges

5 Door seals and sealing surfaces

6 Tu r ntable motor shaft

7 Removable turntable support

Carefully place the turntable support in the

center of the oven floor.

8 Removable turntable

Place the turntable on the turntable support

securely. The turntable will rotate clockwise or

counterclockwise. Only remove for cleaning.

9 Ventilation openings (Rear)

10 Oven light

It will light when oven is operating or door is

open.

11 Waveguide cover: DO NOT REMOVE.

12 Auto-Touch control panel

13 Time display: 99 minutes, 99 seconds

VISUAL DISPLAY

Words in the lower portion of the display will

light to indicate what function is in progress.

Indicators
