IBX-530B-270 Embedded System

Page 39

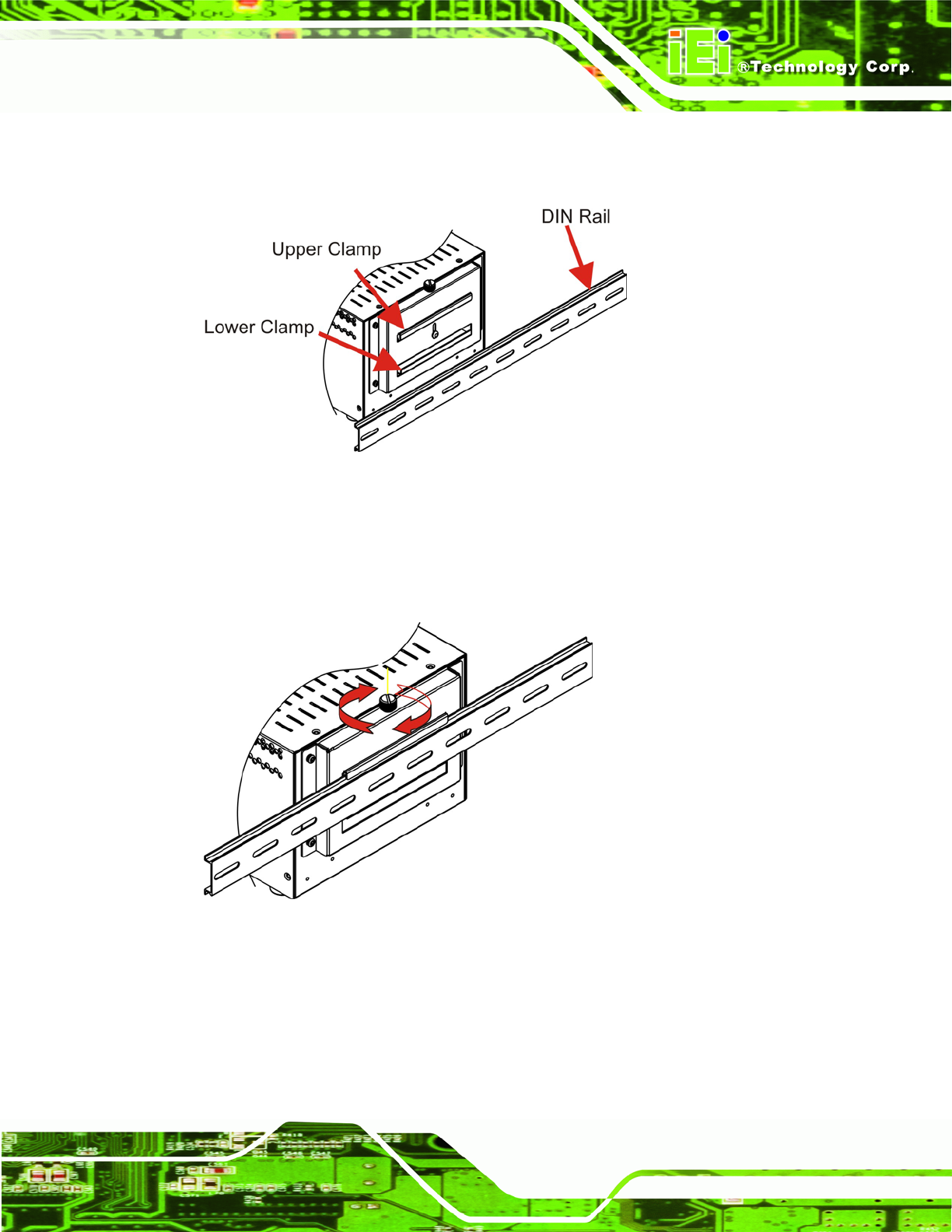

Step 3: Place the DIN rail flush against the back of the mounting bracket making sure

the edges of the rail are between the upper and lower clamps (

Figure 4-10).

Figure 4-10: Mounting the DIN RAIL

Step 4: Secure the DIN rail to the mounting bracket by turning the top screw clockwise.

This draws the lower clamp up and secures the embedded system to the DIN

rail (

Figure 4-11).

Figure 4-11: Secure the Assembly to the DIN Rail

4.2.9 Cable Connections

Once the system has been mounted on the wall, the following connectors can be

connected to the system.
