7 - 86 EM820W 3G Module PIN Code & Power-Saving
7
EM820W 3G Module PIN Code & Power-Saving
Note that there may be some issues when a PIN Code is set for the EM820W 3G
module (if you are unsure of your module version contact your distributor/supplier)
in Windows 8, Mobile Broadband has been turned off, and the system has resumed
from a power-saving state. To prevent any issues it is recommended that you sim-
ply do not enable a PIN for the EM820W 3G module. The following provides in-
structions for disabling the PIN code; for specific instructions on resolving the issue
where “Insert a SIM” appears in the connection see “Resolving the “Insert a SIM”
issue with the 3G Module (Windows 8)” on page 8 - 19.
Disabling a PIN code for a 3G Module
1. Go to the Charms Bar.
2. Select Settings and then click the WiFi icon.
3. Right-click the 3G connection and select View connection properties.

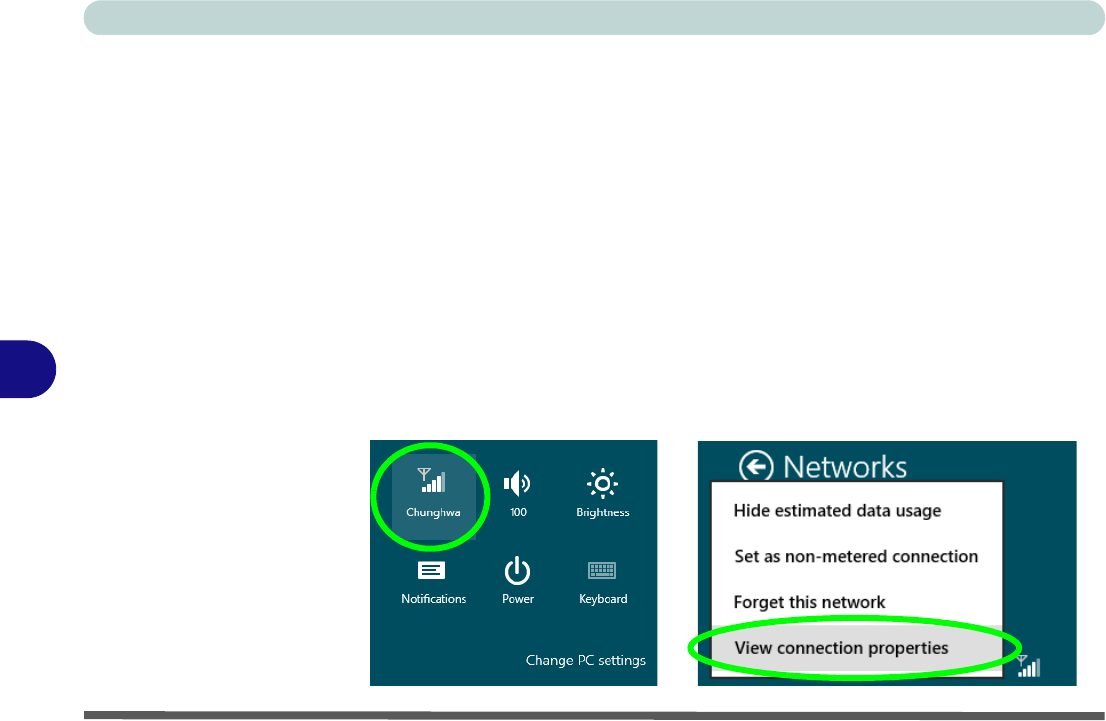

Figure 7 - 71
WiFi Settings
(Charms Bar) &
Right-Click
Connection to View
Properties
