MAINTENANCE

REPLACING THE STAMP CARTRIDGE

If a stamp unit (AR-SU1) is installed on the automatic document feeder and the stamp has become faint, replace the

stamp cartridge (AR-SV1).

Supplies

Stamp cartridge (2 in package) AR-SV1

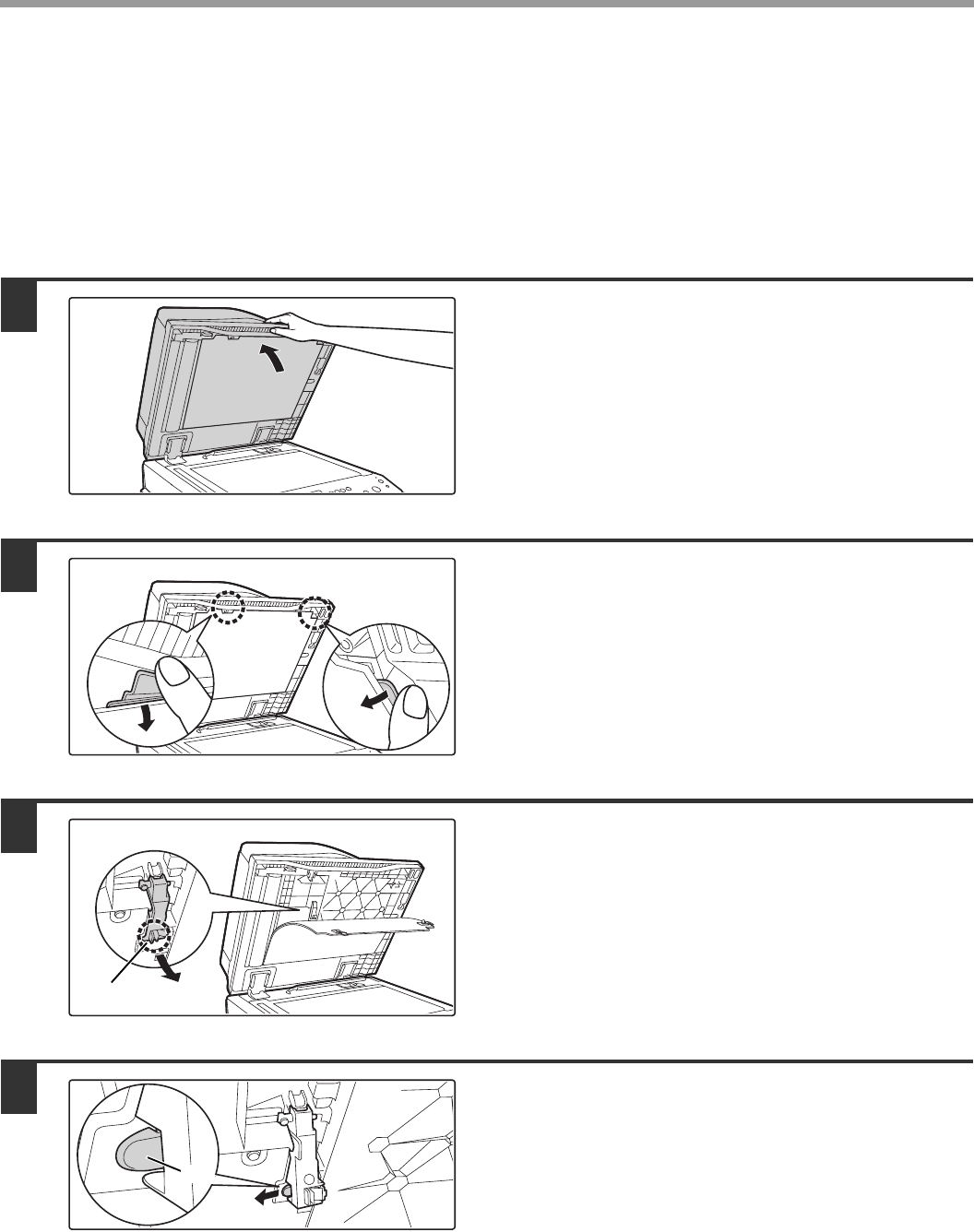

Open the automatic document feeder.

Open the holders on the automatic

document feeder that hold the original

pressure sheet.

Open the holders (two) on the left and right sides.

Grasp the tab on the stamp unit and pull

the unit out.

Remove the stamp cartridge (A).

Tab

(A)
