PART NAMES AND FUNCTIONS (The Reversing Single Pass Feeder)

4-4

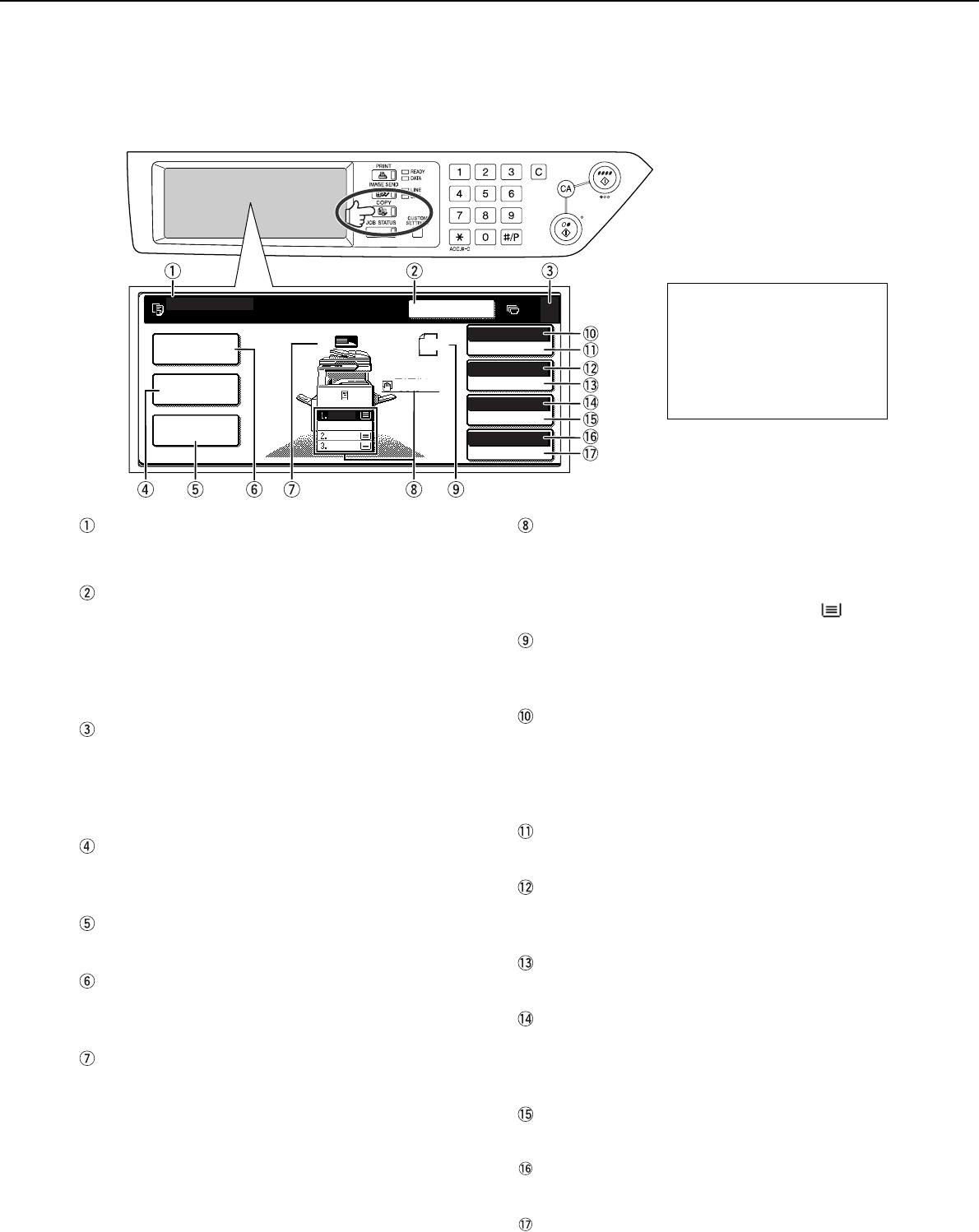

Touch Panel (main screen of copy mode)

The main screen of copy mode shows messages and keys necessary for copying and settings that can be selected.

Touch a key to make a selection. The main screen of the copy mode will be displayed when the [COPY] key is pressed.*

Message display

Basic status messages are displayed here.

[INTERRUPT] key display area

When interrupt copy is available, the

[INTERRUPT] key will be displayed here. When an

interrupt copy job is being run, a [CANCEL] key will

be displayed here to be used for canceling the

interrupt copy job.

Copy quantity display

Displays the selected number of copies before the

[START] key is pressed or the number of remaining

copies after the [START] key is pressed. A single

copy can be made when "0" displayed.

[2-SIDED COPY] key (page 5-6, 5-9)

Touch to display the duplex copy mode setting

screen.

[OUTPUT] key (page 5-3, 5-8)

Touch to select sort, group, and staple sort.

[SPECIAL MODES] key (page 6-2)

Touch to display the special modes selection

screen.

Original feed display

This lights steadily when an original is placed on

the original table of the reversing single pass

feeder. When "Stream feeding mode" in the key

operator programs is turned on, the display blinks

during the waiting period (about 5 seconds) for

placement of the next original. (See page 12 of the

key operator's guide.)

Paper size display

The display shows the location of the paper trays, the

size of the paper in the trays and the approximate

amount of paper loaded in each tray. The approximate

amount of paper in a tray is indicated by .

Original size display

Displays the original size only when an original is

placed for copying.

Original display

"AUTO" appears when the automatic original size

detection function is operating, and the original

size appears when the original size has been

entered manually.

[ORIGINAL] key

Use this key to manually enter the original size.

Exposure display

Displays the icon of the selected resolution and the

exposure scale.

[EXPOSURE] key (page 5-10)

Use this key to adjust the copy exposure.

Paper select display

Displays the selected paper size. When the auto

paper select mode has been selected, "AUTO" will

be displayed.

[PAPER SELECT] key (page 5-2, 5-7)

Use this key to select the paper size.

Copy ratio display

Displays the selected copy ratio.

[COPY RATIO] key (page 5-13)

Use this key to select the copy ratio.

SPECIAL MODES

2-SIDED COPY

OUTPUT

READY TO COPY.

11x17

AUTO

ORIGINAL

AUTO

EXPOSURE

AUTO 8½x11

PAPER SELECT

100

COPY RATIO

PLAIN

INTERRUPT

5½x8½

8½x11

DUPLEX

ORIGINAL

8½x11

* Except when the custom

settings screen is displayed.

The screen at left shows the

machine with the duplex

module/2 x 500 sheet paper

drawer and the duplex bypass/

inverter unit installed.

The image will vary depending

on the equipment installed.
