93
POST DIVE AFTER 10 MINUTES ON SURFACE
Once 10 minutes have elapsed, the Surface Interval time colon
will stop flashing indicating that the Dive and Transition Period
are completed, and a subsequent descent will be considered
a new dive. Operation will revert to the Watch Default Time
screen.
The NORM Surface Main screen can be then be accessed by
depressing the M button 2 seconds. You will then have full ac-
cess to other NORM DC surface modes (e.g., Plan, Fly, Sat, Log,
Hist, Set, etc.).
• Press and release the S button momentarily (< 2 sec) to
access Plan Mode.
> Adjusted No Deco Limits will be displayed based on
residual nitrogen and accumulated oxygen calculated to be
remaining from the previous dives.
• While viewing the first Plan screen, press and release the
A button momentarily (< 2 sec) to access the Time to Fly
screen (Fig. 85), then press it again to access Dsat Time
screen (Fig. 86).
> The Desat counter provides calculated time for tissue
desaturation at sea level.
> If a Violation occurred during the dive, the Desat screen
will not be displayed.

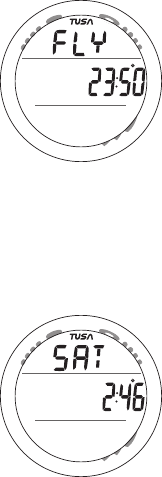

Fig. 85 - TIME TO FLY
Fig. 86 - DSAT TIME
