Basic Operation

-39

• The Digital Shift function works with BORDER, STRETCH or SMART STRETCH screen. For details,

see page 53.

• To access Digital Shift function, press twice.

The Digital Shift menu will appear when a compatible 16:9 signal is displayed.

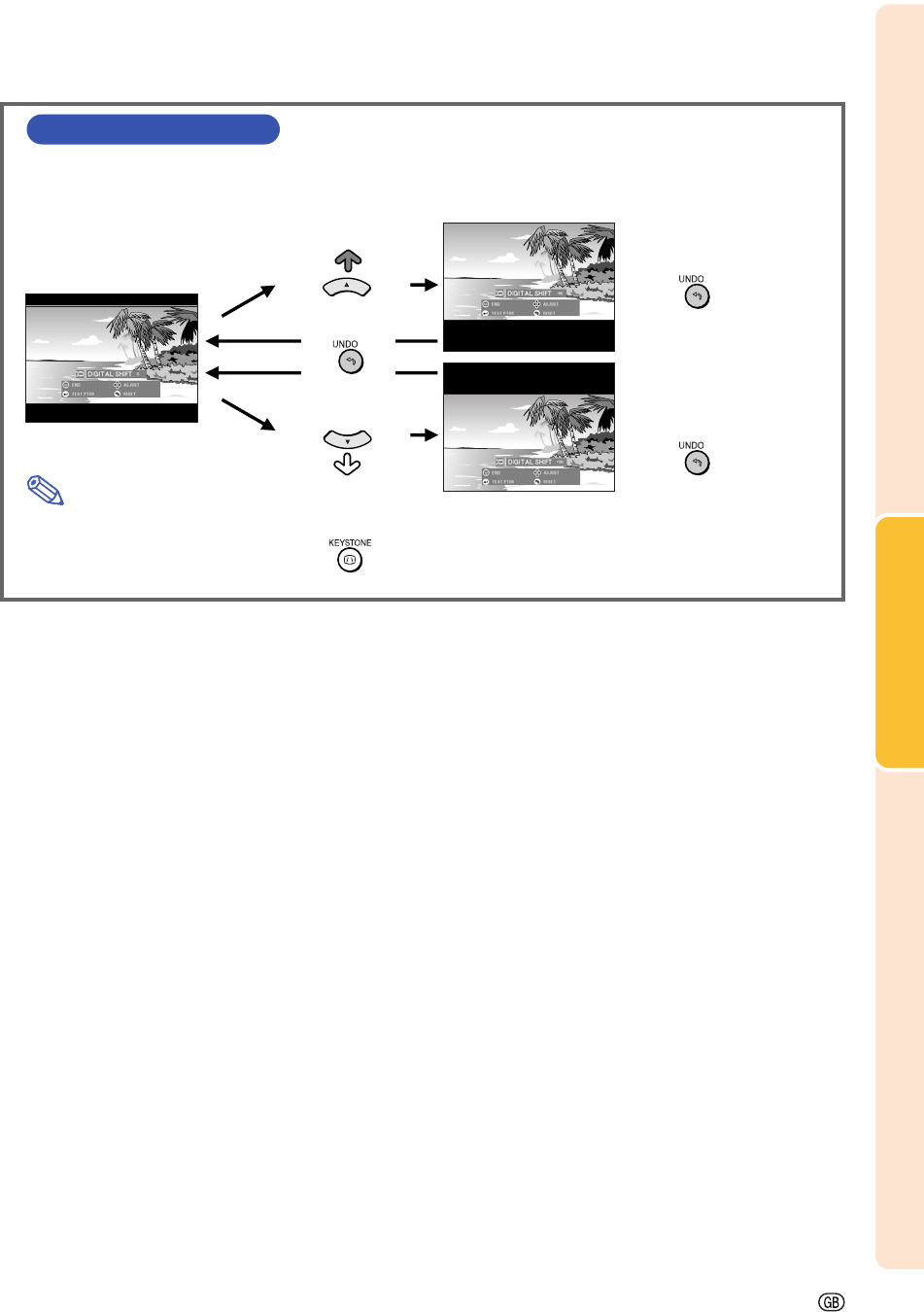

Digital Shift Setting

For easier viewing, this function shifts the entire image projected on

the screen up or down when projecting 16:9 images from DVD

players and DTV* decoders.

* DTV is the umbrella term used to describe the new digital television

system in the United States.

UNDO button

Press ' to move the

projected image upwards.

Press to reset the

image.

Press " to move the

projected image

downwards.

Press to reset the

image.

Note
