Fan

Description Spare part number

Fan 641183-001

Before removing the fan, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet,

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

Battery on page 58).

5. Remove the bottom door (see

Bottom door on page 64).

Remove the fan:

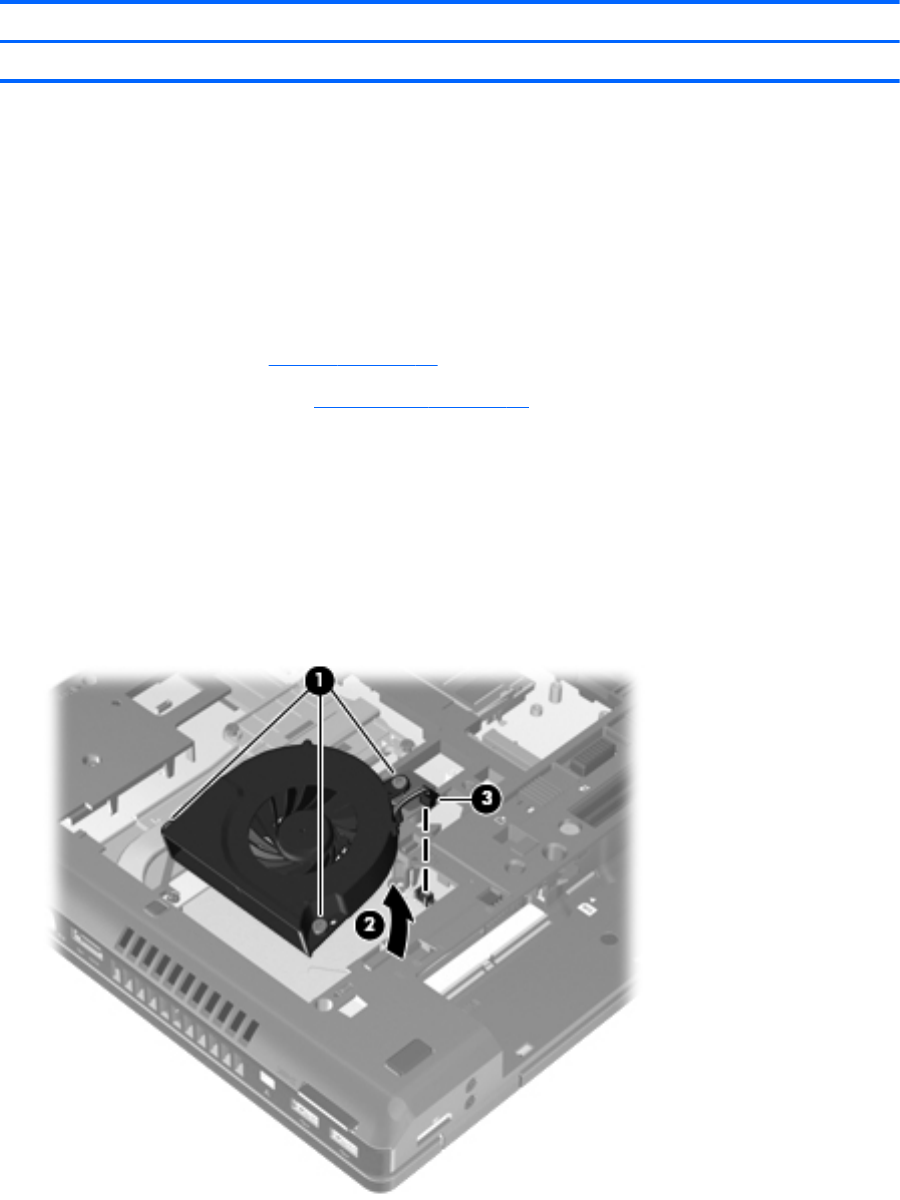

1. Position the computer upside-down with the front toward you.

2. Loosen the three captive Phillips screws (1) that secure the fan to the bottom cover.

3. Rotate the right side of the fan upward at an angle (2), and then lift the fan up to gain access to

the system board connector.

4. Disconnect the fan cable (3) from the system board.

Reverse this procedure to install the fan.

Component replacement procedures 85
