3-8 CD-ROM Drive

3

4. Slide out the supplied blank battery filler cover.

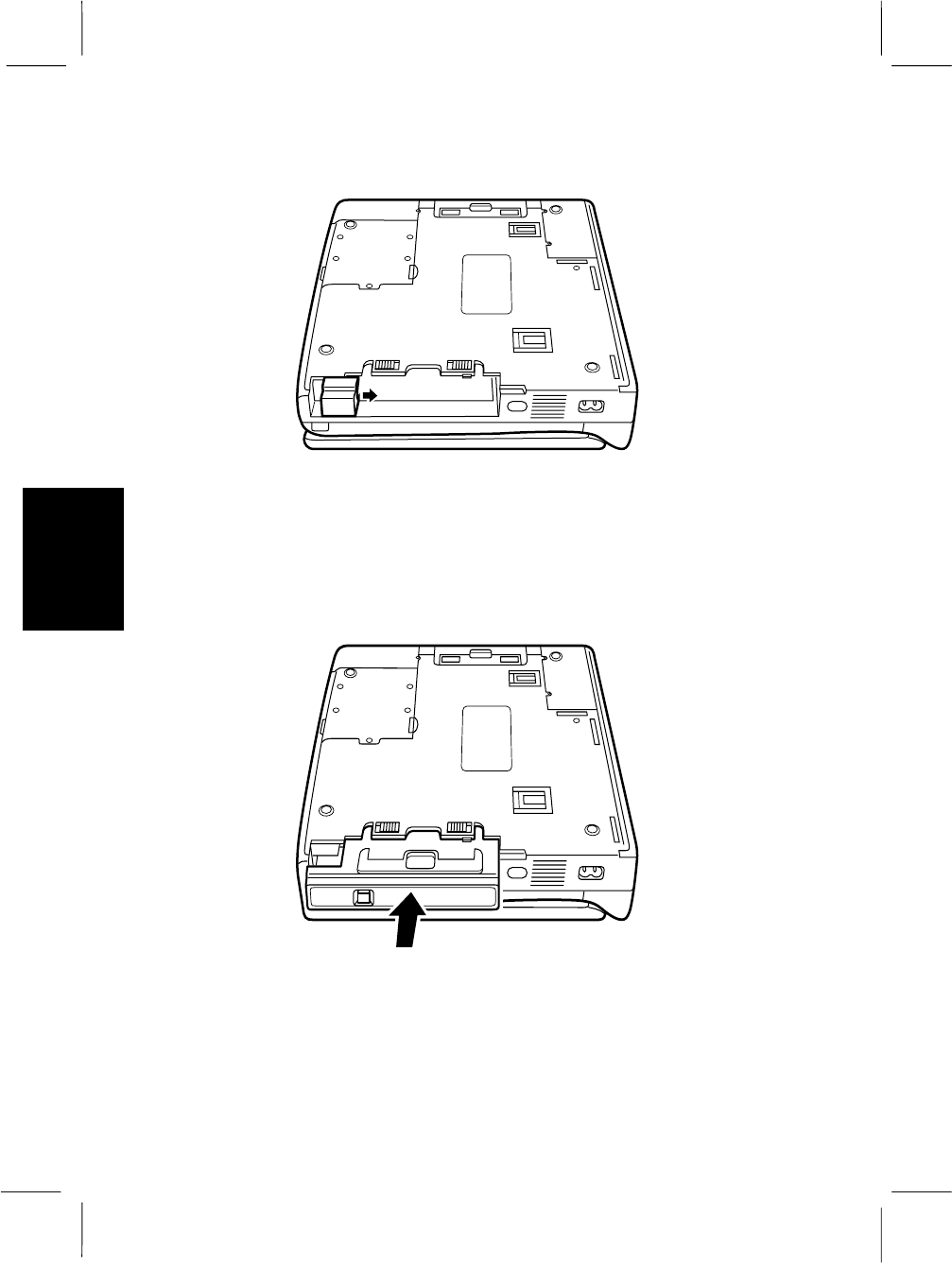

Figure 3-3. Removing the Blank Battery Filler Cover

5. Make sure the bottom of the CD-ROM drive is facing up, then push the

connectors all the way into the notebook until the CD-ROM drive clicks into

place; the retaining levers will slide out automatically.

Figure 3-4. Inserting the CD-ROM Drive
