Installing and Removing PC Cards
2

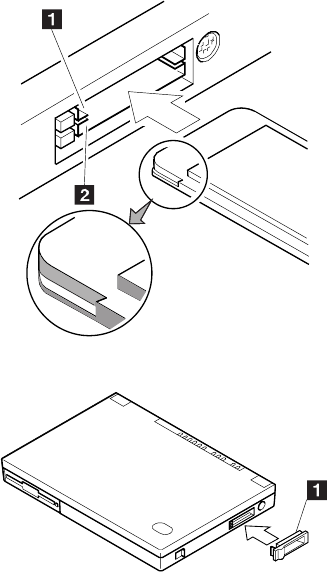

Insert the PC Card into an appropriate slot according to
your PC Card type:
If you are using a Type I or Type II PC Card, insert it into
either the upper slot 1 or the lower slot 2 as shown.
Then press it firmly into the connector.
If you want to use another PC Card, insert it into the other
slot in the same way.
If you are using a Type III PC Card, insert the card into the
lower
slot 2 as shown. Then press it firmly into the
connector.
3
Install the cover with the cable opening 1 .
Chapter 6. Installing and Removing Options 135
