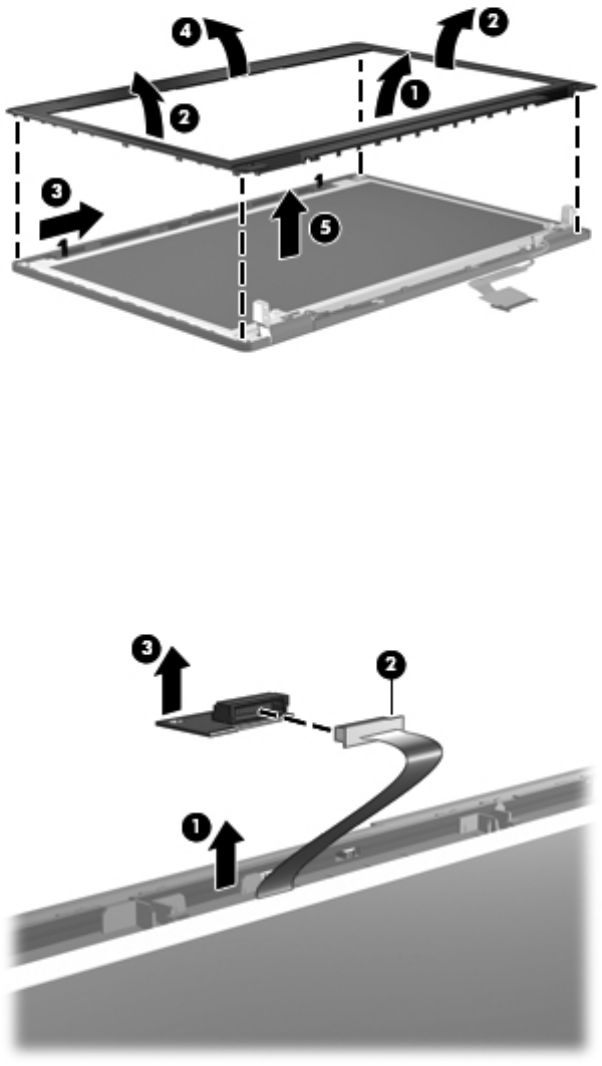

Remove the display bezel (5). The display bezel is available using spare part number

655562-001.

13.

If it is necessary to replace the microphone module:

a. Detach the microphone module (1) as far as the microphone module cable allows.

(The module is attached to the display enclosure with double-sided tape.)

b. Disconnect the microphone module cable (2) from the module.

c. Remove the microphone module (3). The microphone module is available using spare part

number 647675-001.

14. If it is necessary to replace the display panel:

a. Remove the six Phillips PM2.0×4.0 screws (1) that secure the display panel to

the display enclosure.

Lift the display panel (2) to release it from the display enclosure.

Component replacement procedures
