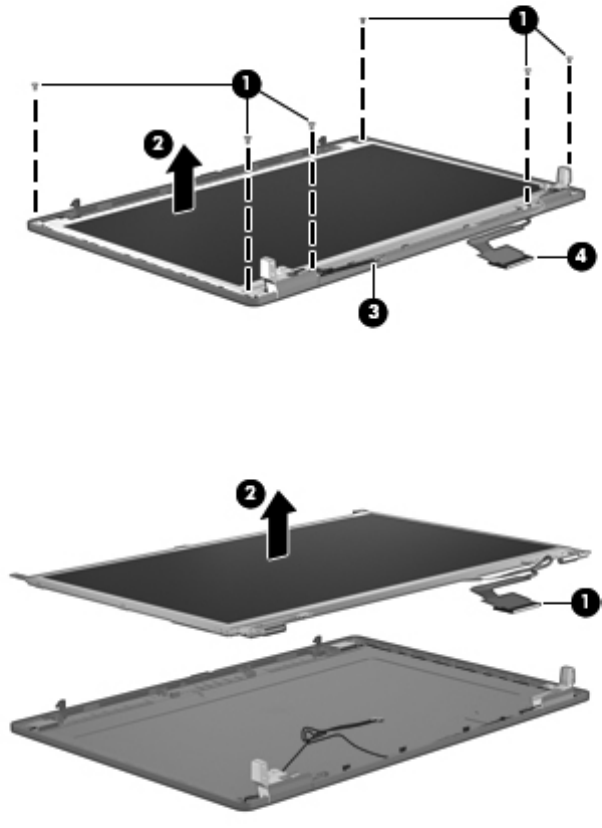

Release the wireless antenna cables (3) from the left hinge and the display panel cable (4)

from the right hinge.

d. Detach the display panel cable (1) from the display enclosure. (The display panel cable is

attached to the display enclosure with double-sided tape.)

e. Remove the display panel (2).

15. If it is necessary to replace the hinges:

a. Remove the six Phillips PM2.0×3.0 (1) screws that secure the hinges to the display panel.

62 Chapter 4 Removal and replacement procedures
