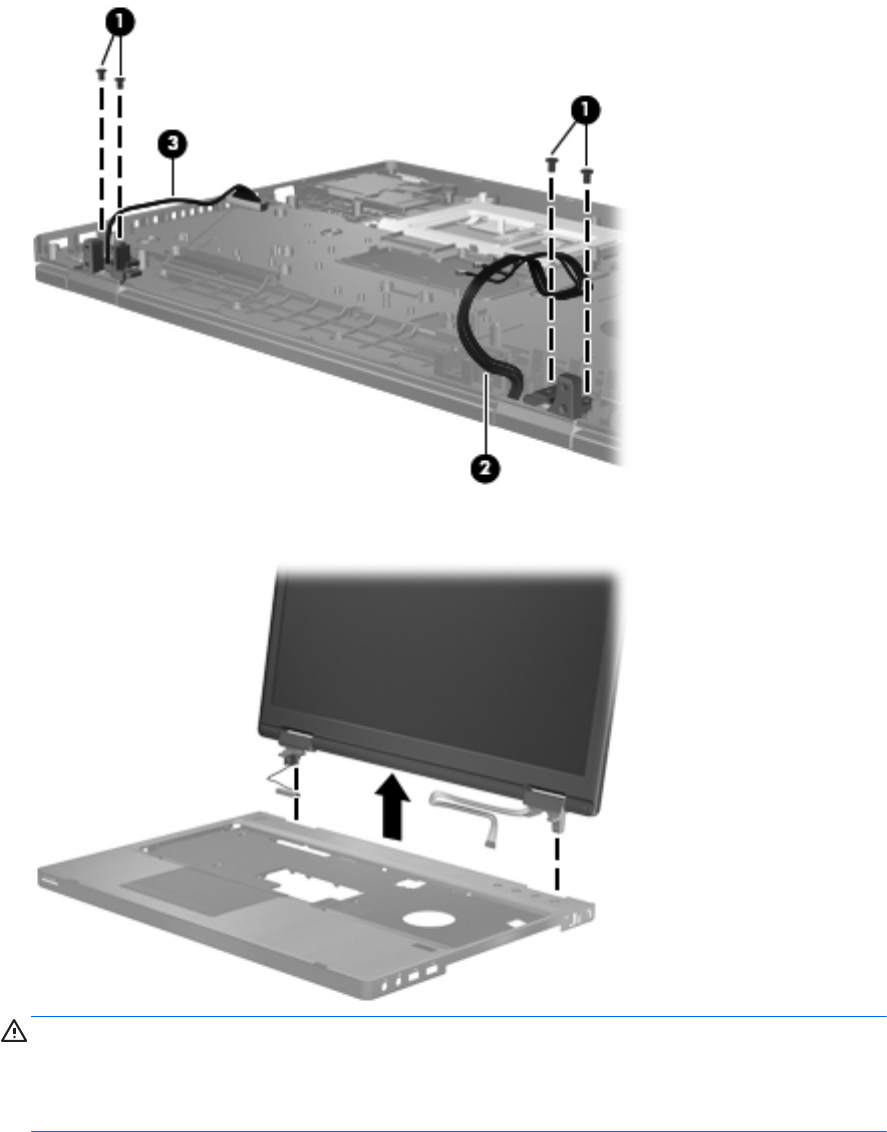

4. For reassembly, note the routing path of the wireless antennas (2) and the display cable (3).

5. Lift the display assembly straight up and remove it.

CAUTION: When installing the display assembly, be sure that the wireless antenna cables are

routed and arranged properly.

Failure to properly route the antennas can result in degradation of the computer's WLAN and

WWAN performance.

Component replacement procedures 113
