Acquisition Interface

CS 9300 System User Guide (SM748)_Ed 01 3–11

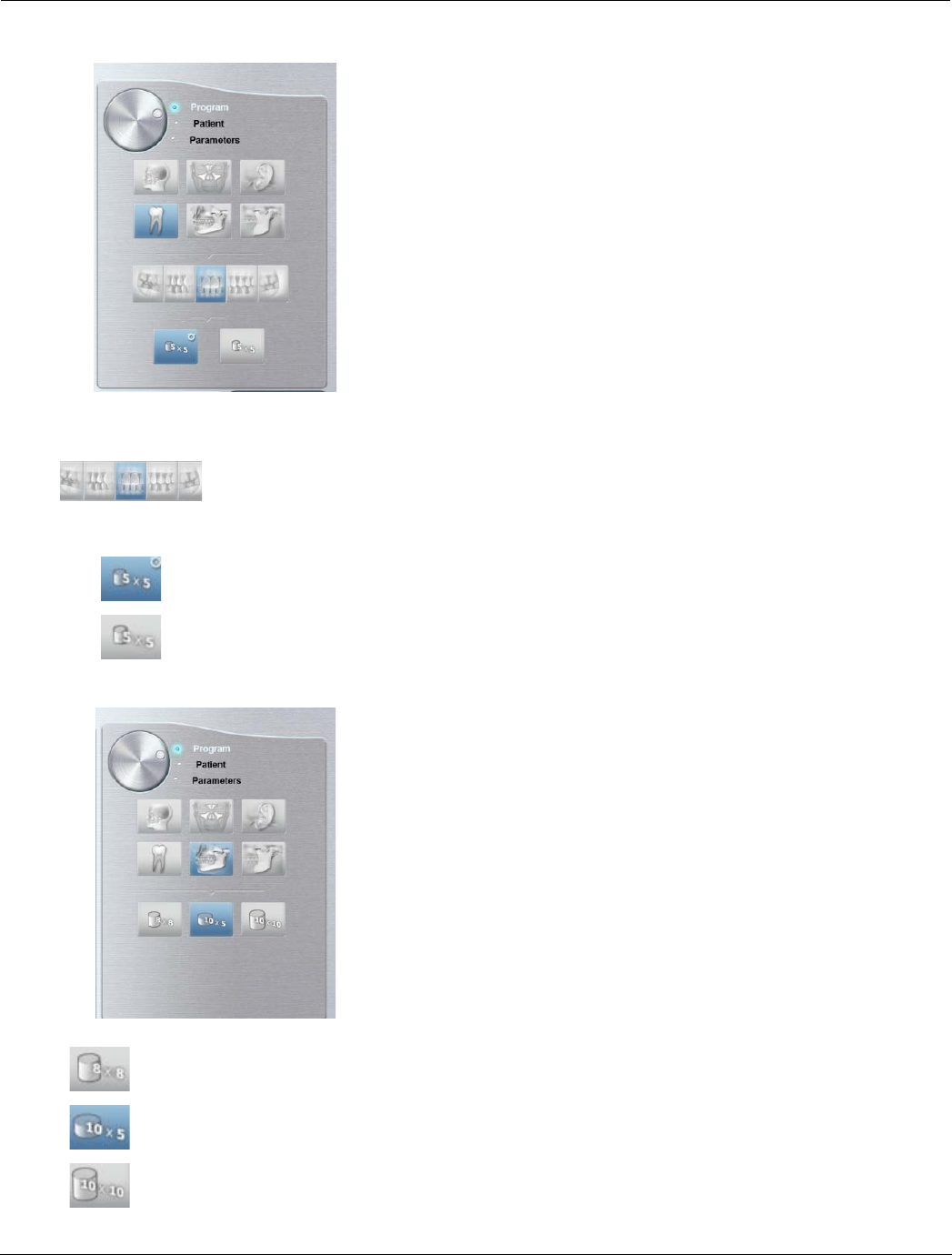

Figure 3–9 Teeth Program Pane

Figure 3–10 Jaw Program Pane

Teeth setting options:

Teeth buttons: Select a group of teeth to be included in the exam. Upper

and lower jaw have the same setting here and will then be designated during

the patient positioning.

Program options:

Fast Acquisition button: Minimizes the acquisition time to help avoid patient

movement.

High Quality Acquisition button: Longer acquisition time with more

projections for maximum quality image.

Both jaws restricted acquisition: Ideal for jaw exams when the third molars are not

required.

Single jaw full acquisition: Upper or lower jaw exam only.

Both jaws full acquisition: Full upper and lower jaws exam.
