LS013B4DN04 LCD Modules

Application Note 5

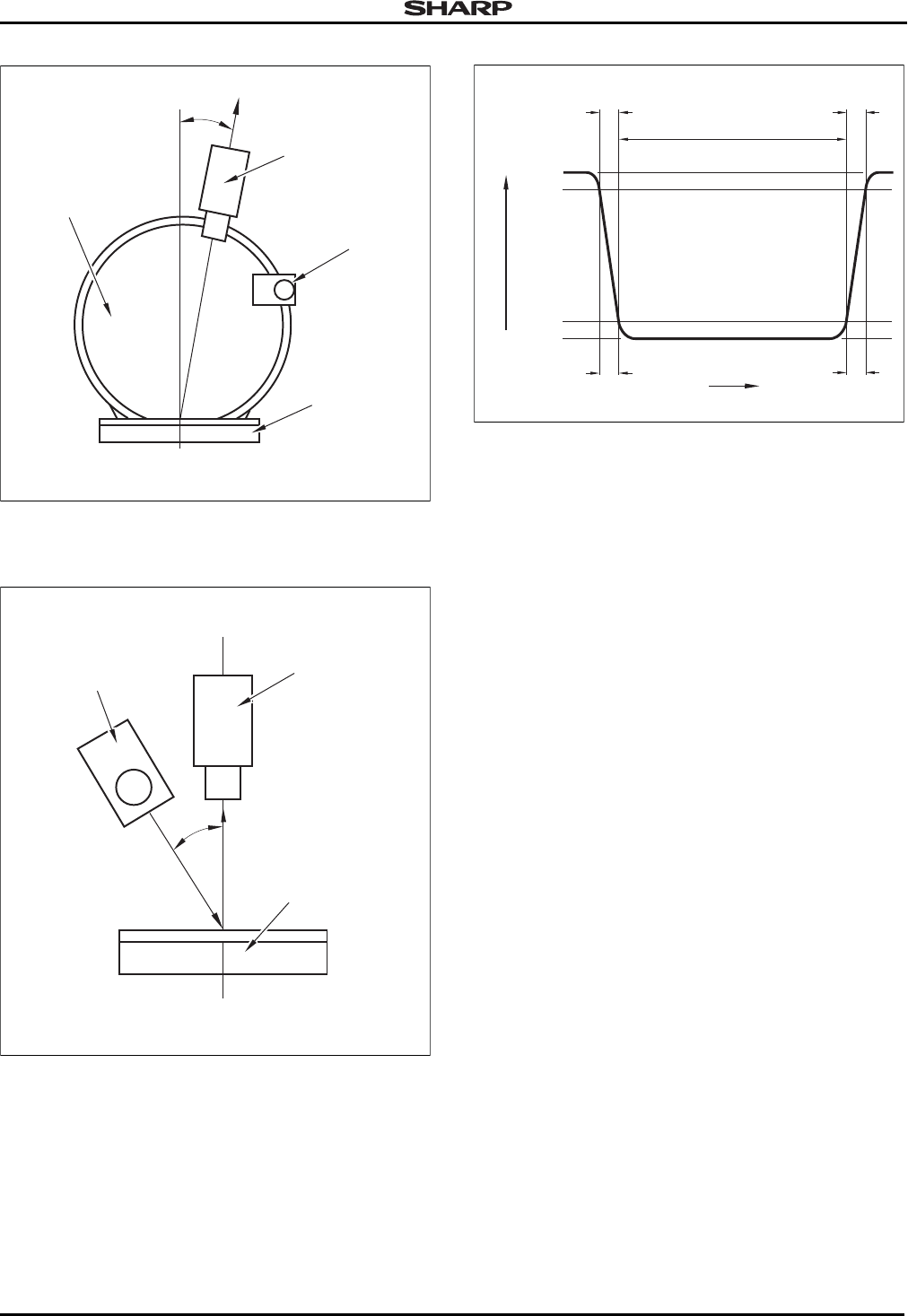

Figure 3. Setup for Contrast, Reflection Ratio,

and Chromaticity

Figure 4. Setup for Response Time

LS013B4DN04-12

Normal Line

Display Center

Light Receiver

Light Source

LCD Panel

Integrating

Sphere

8°

LS013B4DN04-13

Normal Line

Display Center

Light Receiver

Light Source

LCD Panel

-30°

Figure 5. Response Time

LS013B4DN04-15

100%

White

White

Black

Photo-detector Output

Time

90%

3%

0%

τ

r

τ

d
