AL-2051 DISASSEMBLY AND ASSEMBLY 8 - 14

6. Manual paper feed section

A. List

B. Disassembly procedure

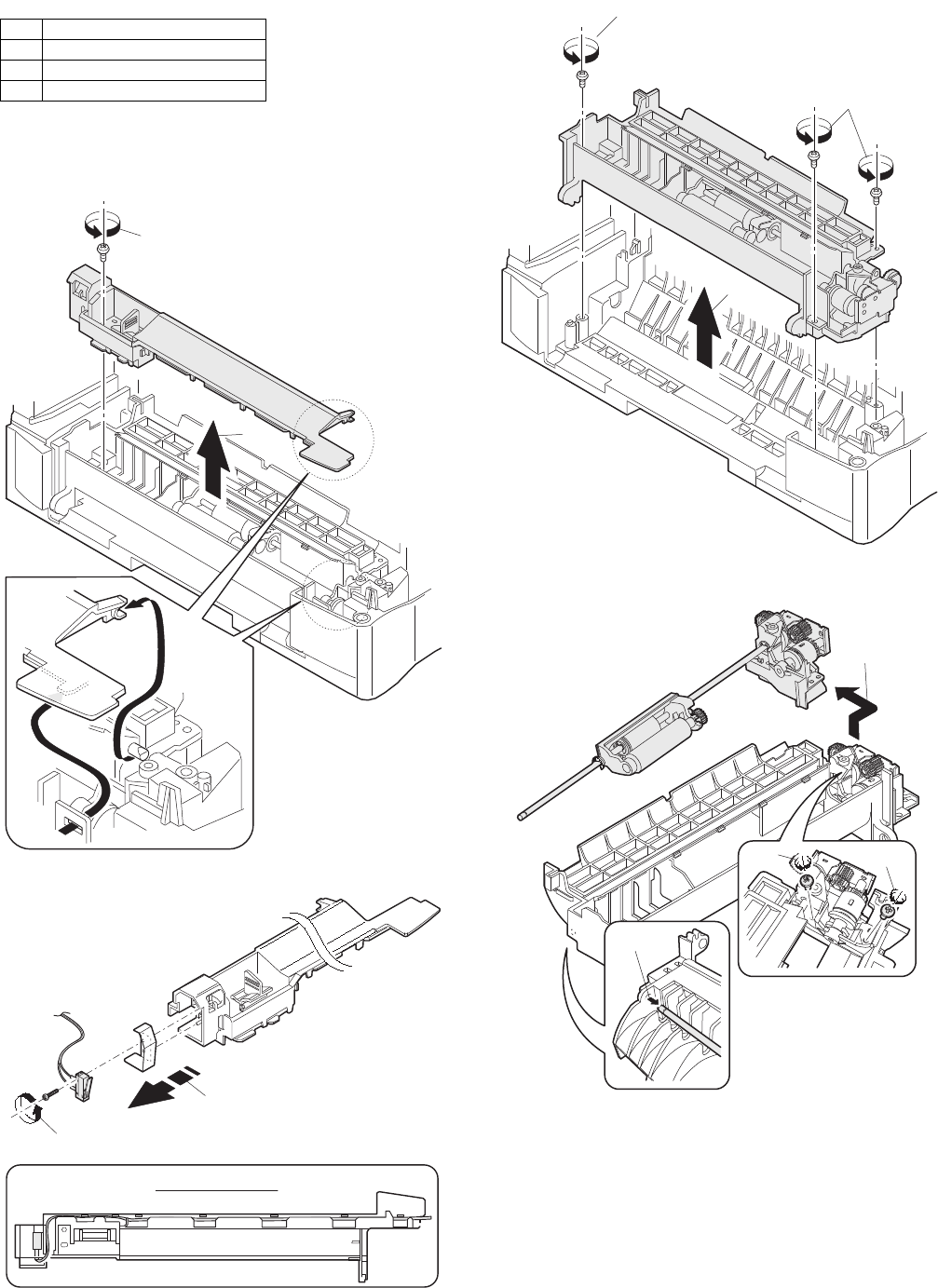

Multi unit

1) Remove the screw and remove the multi upper cover.

2) Remove the screw and remove the side door detection unit.

3) Remove three screws and remove the multi paper feed upper

frame.

4) Remove two screws and remove the multi feed bracket unit

from the multi paper feed upper frame.

No. Part name Ref.

1 Manual transport roller

2 Cassette detection switch

3 Side door detection unit

Back Wire treatment
