User’s Guide 5-3

Accessing the Driver

Macintosh Operations

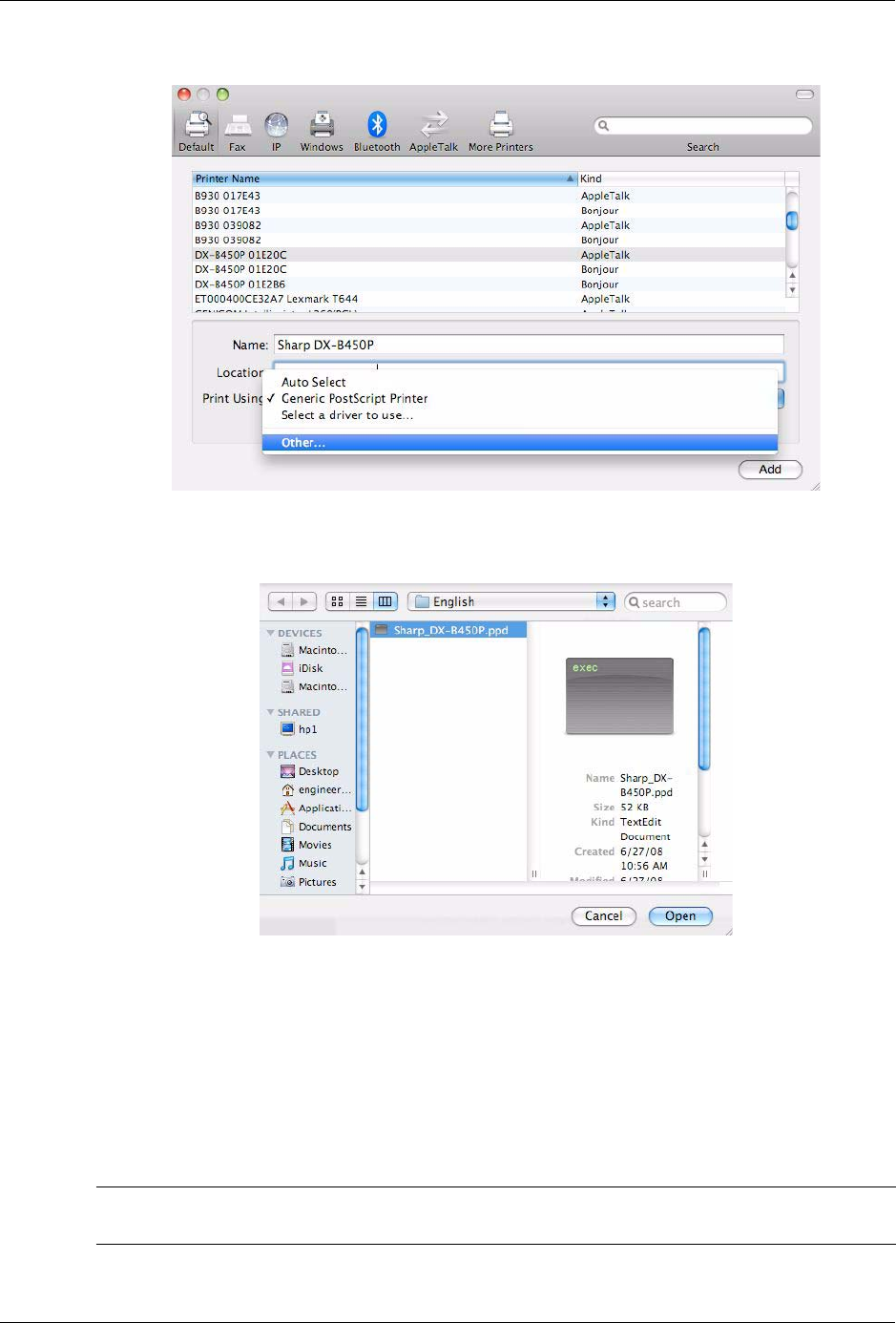

6. Select Other from the Print Using pulldown.

A browse window is displayed.

7. Browse to the CD to select the desired PPD.

8. Click Open.

9. Click Add.

The printer is installed.

Accessing the Driver

The Driver can be accessed from your application’s Print menu.

NOTE: If there is a conflict between settings in the Operator Panel, Driver, or Embedded Web Server and

printer settings set via your application, the application settings supersede any other setting.
