User’s Guide 8-7

Tray module (A4/Letter, 550 sheets)

Accessories

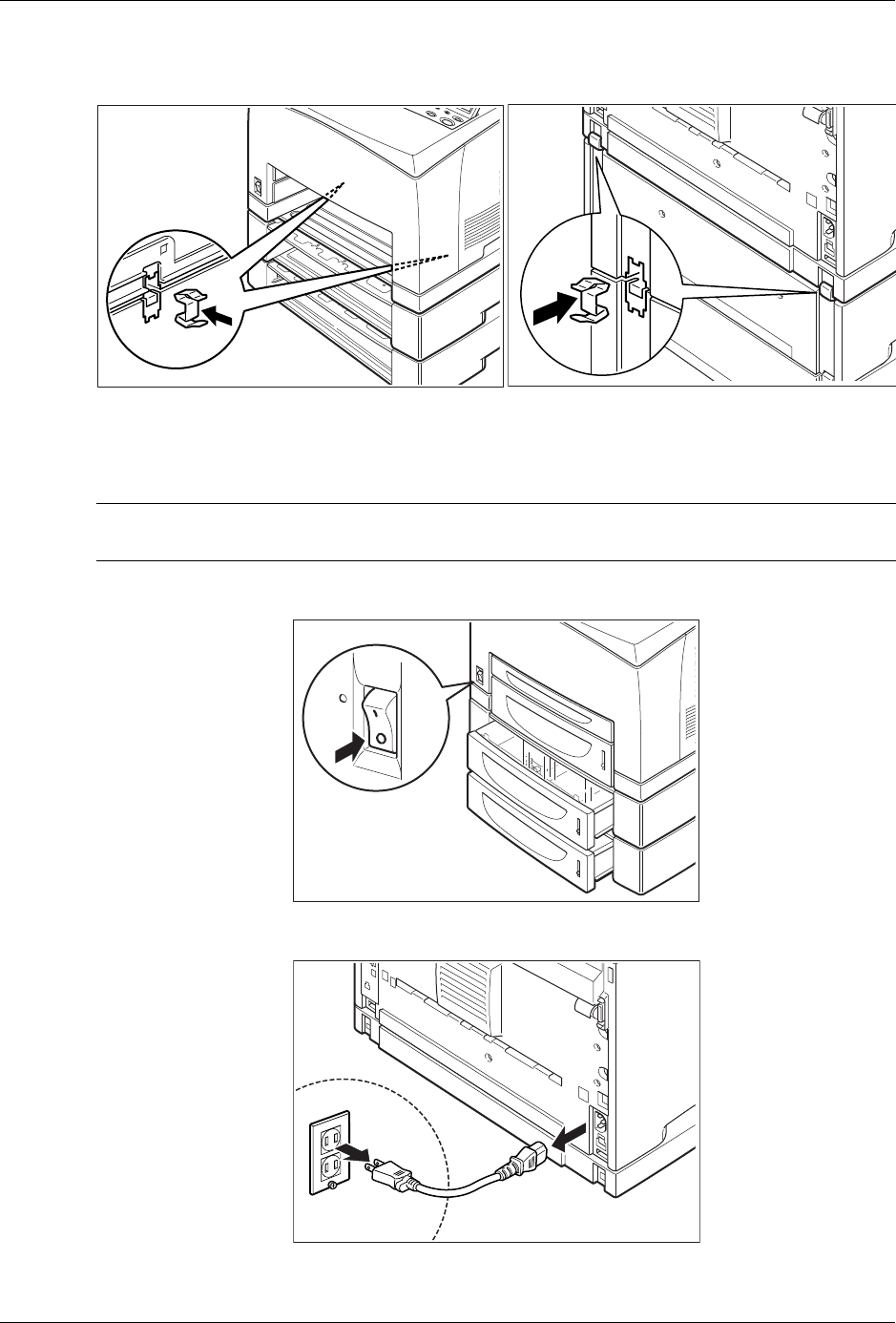

11. Insert the fasteners provided into the 2 locations inside and 2 locations at the back of the

printer. Insert the fasteners securely.

12. Push the paper tray completely into the printer.

Uninstalling the Tray Module

NOTE: This procedure explains the uninstalling of two tray modules as an example. You can use the same

procedure for uninstalling one tray module.

1. Switch off the power to the printer.

2. Pull out the power cord from the power outlet and then the printer.
