Drivers & Utilities
4 - 2 Driver Installation
4
Driver Installation
1. Insert the Device Drivers & Utilities + User’s Manual
disc into the computer’s DVD drive.
2. Click the message “Tap to choose what happens
with this disc.”
3. Click Run autorun.exe.
4. Click Install Drivers (button), or Option Drivers
(button) to access the Optional driver menu.

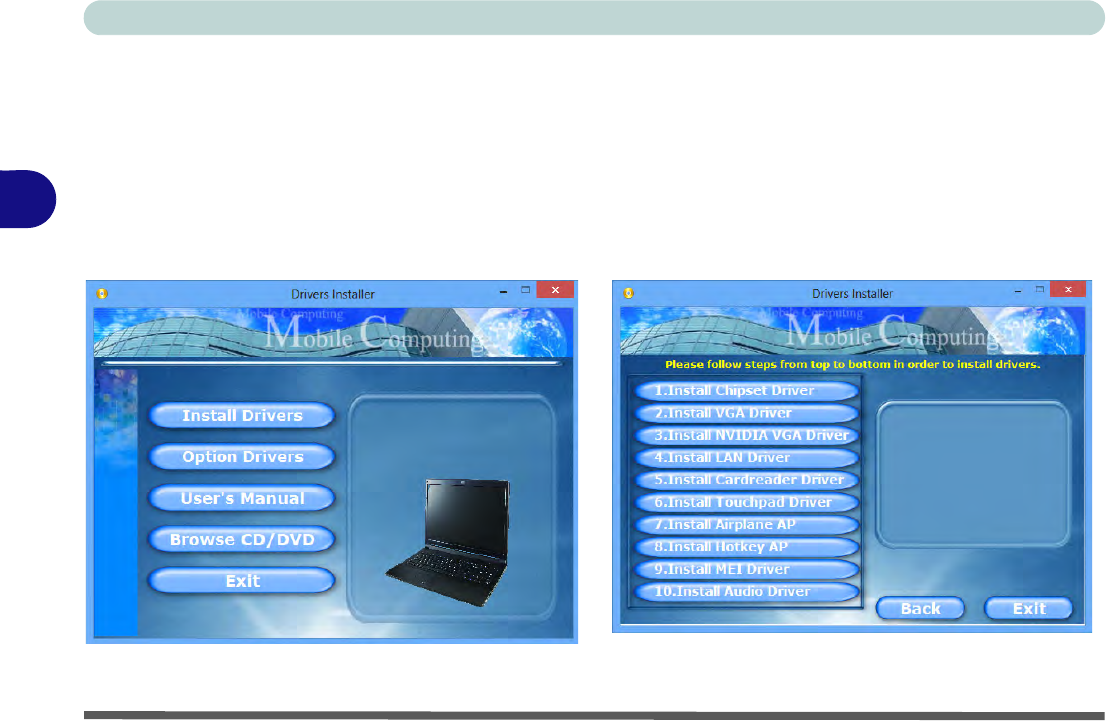

Figure 4 - 1 - Drivers Installer Screen 1
5. Check the driver installation order from Table 4 - 1,
on page 4 - 3 (the drivers must be installed in this
order) which is the same as that listed in the Drivers
Installer menu below.
6. Click to select the driver you wish to install, (you
should note down the drivers as you install them).
7. Follow the instructions for each individual driver
installation procedure as listed on the following
pages.
Figure 4 - 2 - Install Drivers
