Modules
Setting Up SATA RAID or AHCI Mode 7 - 11
7
Deleting a RAID (Windows 8)
If you wish to delete an existing RAID then follow the procedure below to do so. How-
ever
backup up any necessary files and data before deleting a RAID
, as doing so
will result in the loss of all data on the RAID volumes.
1. Start-up your notebook computer and press <F2> to enter the BIOS.
2. Go to Intel(R) Rapid Storage Technology (in the Advanced menu) and press
<Enter>.
3. Go to the RAID (listed under RAID Volumes:) and press <Enter>.
4. Select Delete and press <Enter>.
5. Select “Yes” (note that al the data on the volumes will be lost) and press <Enter>.

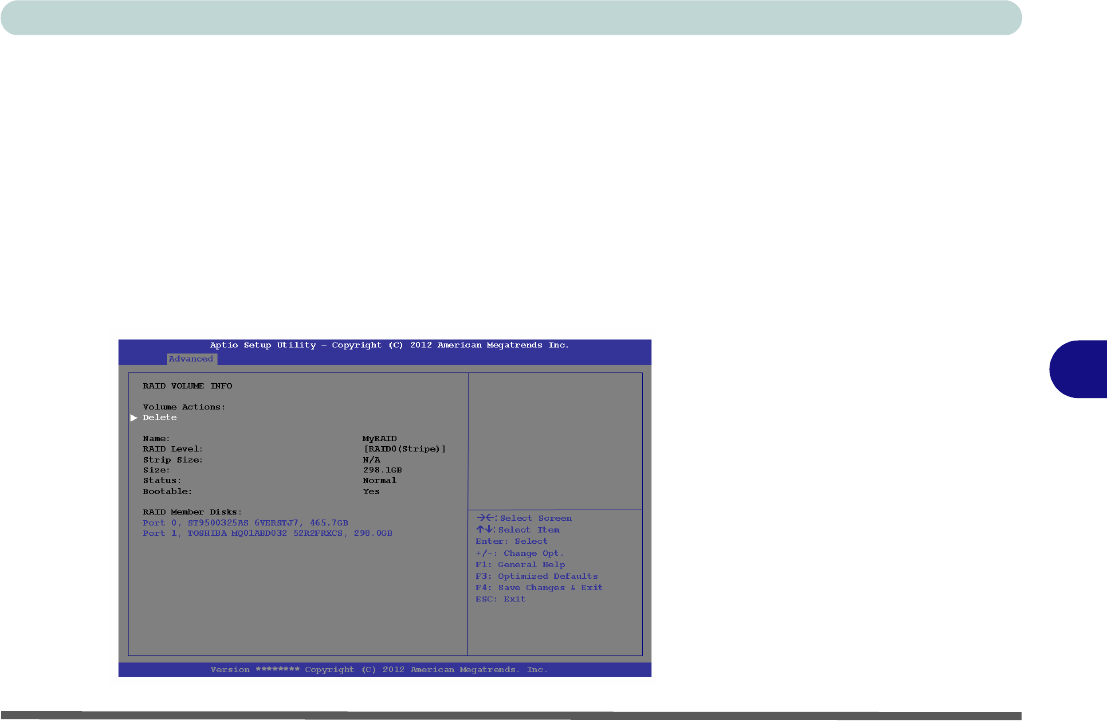

Figure 7 - 5
Delete RAID
(Advanced > Intel(R)
Rapid Storage
Technology)
