Operating in Automated Mode

3-10 Tenth Edition 9871

Entering Cartridges through the CAP

To enter cartridges through the CAP:

1. Issue the enter command at the operator console.

• The CAP status display area on the LSM operator panel displays ENTER.

• The CAP door unlocks.

2. Open the CAP door by pulling the CAP latch as shown in Figure 3-6.

• The panel displays Door Open, indicating that the CAP is open.

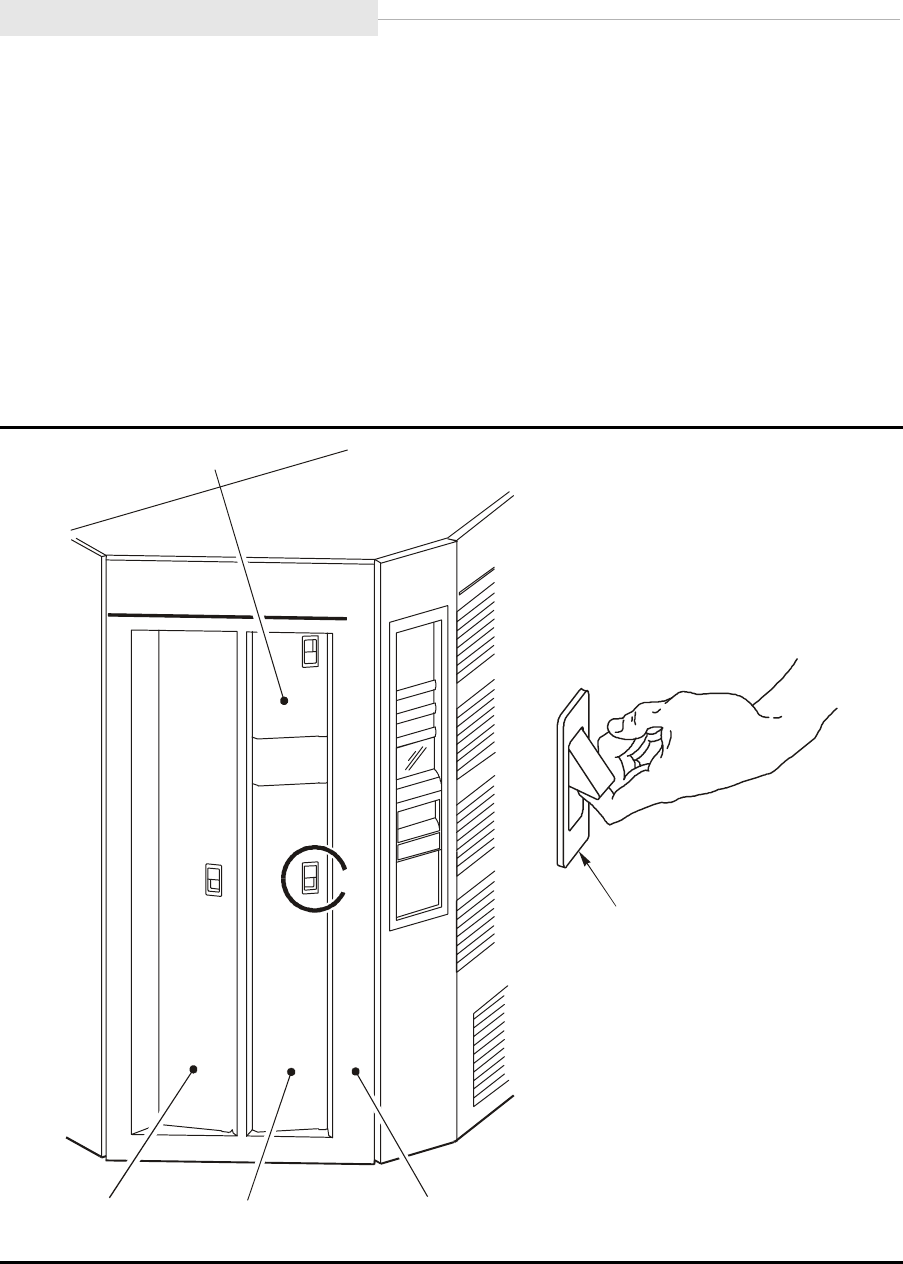

Figure 3-6. Opening the Cartridge Access Port

C40039

PCAP

CAP 0

CAP 1

(OPTIONAL)

LSM

ACCESS

DETAIL A

CAP

LATCH
