AL-1551 DISASSEMBLY AND ASSEMBLY 8-8

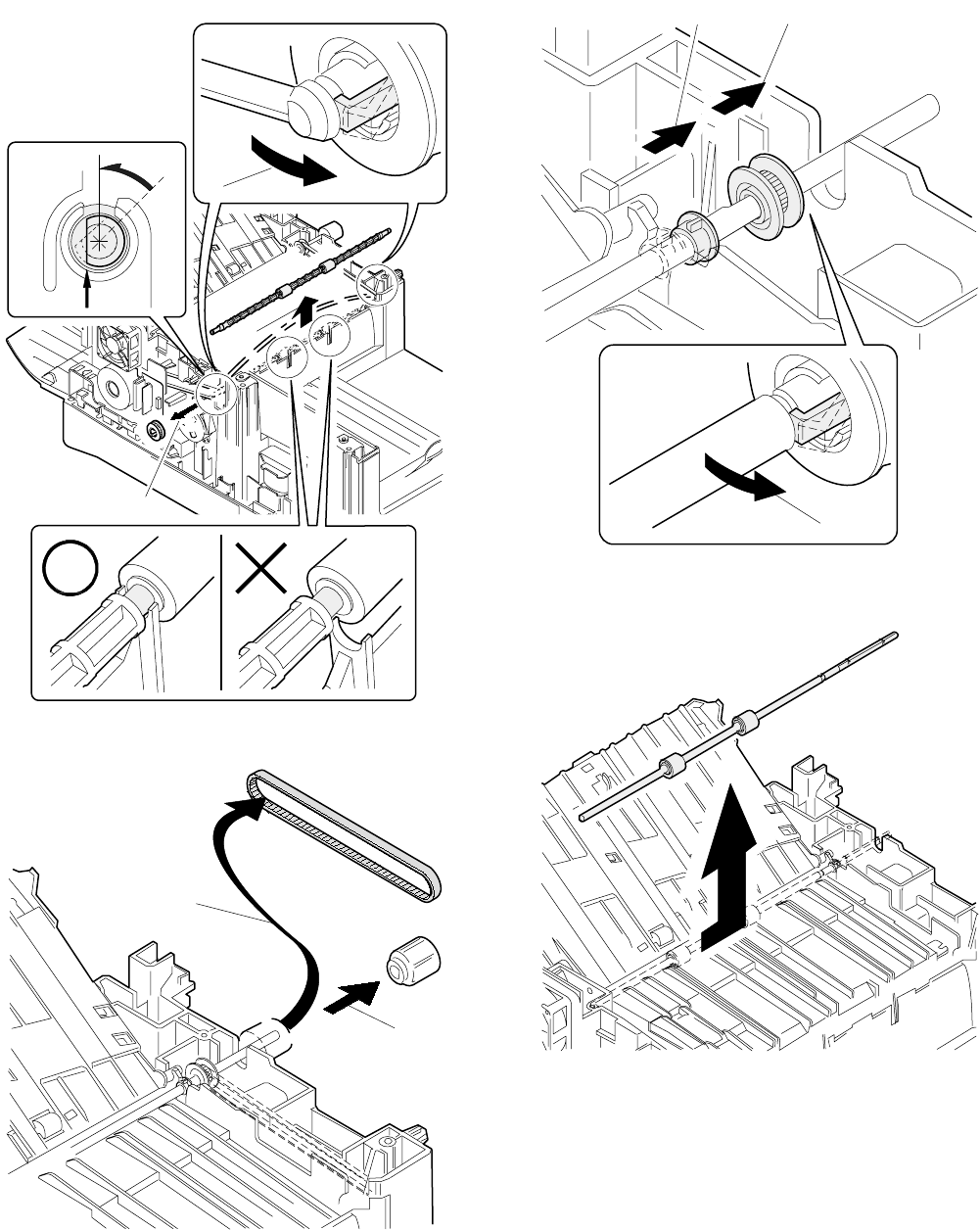

5) Remove the pulleys on the both sides and remove the paper exit

roller.

6) Pull out the paper exit roller knob and remove the belt.

7) Release the belt pulley (a) lock and remove the belt pulley bearing.

8) Remove the paper exit roller.

4)

2)

1)

3)

1)

2)

2)

3)

1)
