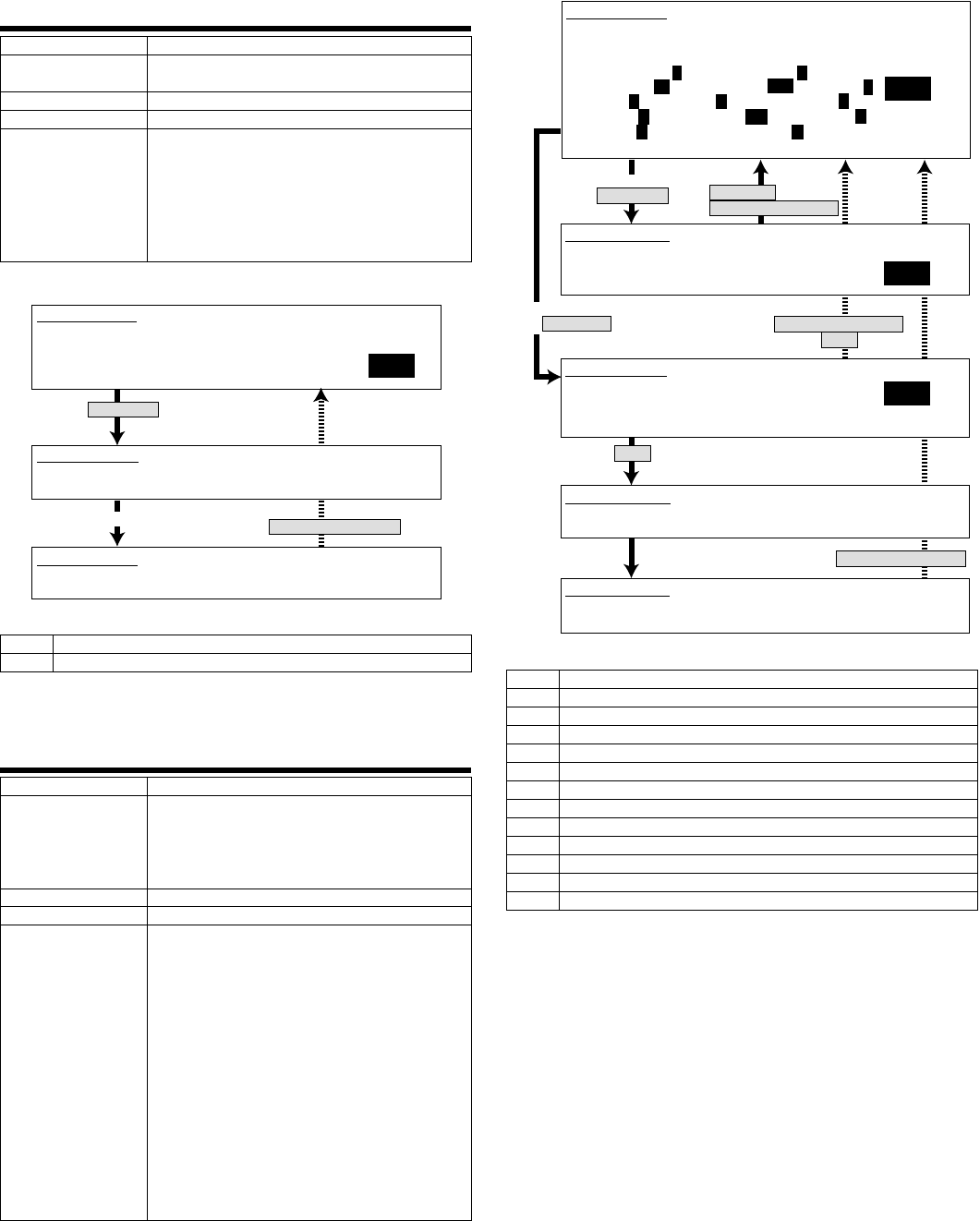

AR-FX12 SIMULATIONS, FAX SOFTWARE SWITCH 6-24

Note: Release write protect.

* FAX program writing is allowed by the jumper and the DIP switch

which differ depending on the model.

66-42

Purpose

Function (Content) Used to rewrite the program to the PIC installed

in the FAX box.

Section FAX

Item

Operation/Procedure During writing, "EXECUTING" is displayed.

When writing is completed, if the process is OK,

"OK" is displayed. In case of an error, "NG" is

displayed. Possible causes of NG are:

•Write protect is set.

•PIC is not installed.

•Failure in access to PIC

1 Execution (FAX program writing is allowed.)

2 Cancel (FAX program writing is allowed.)

66-43

Purpose

Function (Content) To execute this simulation, FAX program writing

must be allowed. (Jumper and DIP switch which

differ depending on the model)The adjustment

value of PIC are changed and written. The

current setting is highlighted beside the item.

Section FAX

Item

Operation/Procedure 1) Set the adjustment value with 10-key.

Press P key to save the entered value.

The setting range differs depending on the

item.

Example:1.Number of sensing until

settlement of the CI signal level:

(Default) 2, (Range) 1 - 15

* When the value outside the specified range is

displayed, scan from the PIC may not have

been completed. (Because of FAX program

write protection, etc.)

2) When YES is selected, the adjustment values

are collectively written into the PIC installed

to the FAX box.

Normal completion of writing: "WRITING OK"

In case of an error:"NG"

SIMULATION 66-42

PIC PROGRAM RELOAD.

ARE YOU SURE?.

1. YES

2. NO

SIMULATION 66-42

PIC PROGRAM RELOAD EXECUTING...

SIMULATION 66-42

PIC PROGRAM RELOAD

Press [START] key.

After completion of reload

Press [CUSTOM SETTING] key.

0 WRITING to PIC • • Writing to PIC

1 ci_level_judge(1-15)

2 ci_cycle_min(0-254)

3 ci_cycle_max(0-254)

4 ci_range(0-127)

5 ci_count(1-15)

6 ci_detect(1-15)

7 fnet_level_judge(1-15)

8 fnet_range(0-74)

9 fnet_time_out(76-255)

10 fnet_count(1-15)

11 poff_time(0-15)

12 mswon_level_judge(2-15)

SIMULATION 66-43

PIC ADJUSTMENT VALUE WRITING .

ENABLE WRITE PIN (for FAX PROGRAM ROM).

SELECT 0-12, AND PRESS START.

0. WRITING for PIC 1. ci_level_judge

2. ci_cycle_min 3. ci_cycle_max 4. ci_range

5. ci_count 6. ci_detect 7. fnet_level_judge

8. fnet_range 9. fnet_time_out 10. fnet_count

11. poff_time 12. mswon_level_judge

SIMULATION 66-43

PIC ADJUSTMENT VALUE WRITING. INPUT VALUE 1-15, AND

PRESS START.

1. ci_level_judge(1-15)

SIMULATION 66-43

PIC ADJUSTMENT VALUE WRITING.

EXECUTING...

SIMULATION 66-43

PIC ADJUSTMENT VALUE WRITING.

ARE YOU SURE?

1.YES

2.NO

SIMULATION 66-43

PIC ADJUSTMENT VALUE WRITING.

OK ( or NG )

100

3 3

107

Serect other than 0,

and Press [START] key.

Serect 0,and

Press [START] key.

Press 1 key.

Press [START] key or

Press [CUSTOM SETTING] key

Press [CUSTOM SETTING] key or

Press 2key

Press [CUSTOM SETTING] key
