11.2 FUSING DRIVE RELEASE MECHANISM AND COVER
SAFETY SWITCH

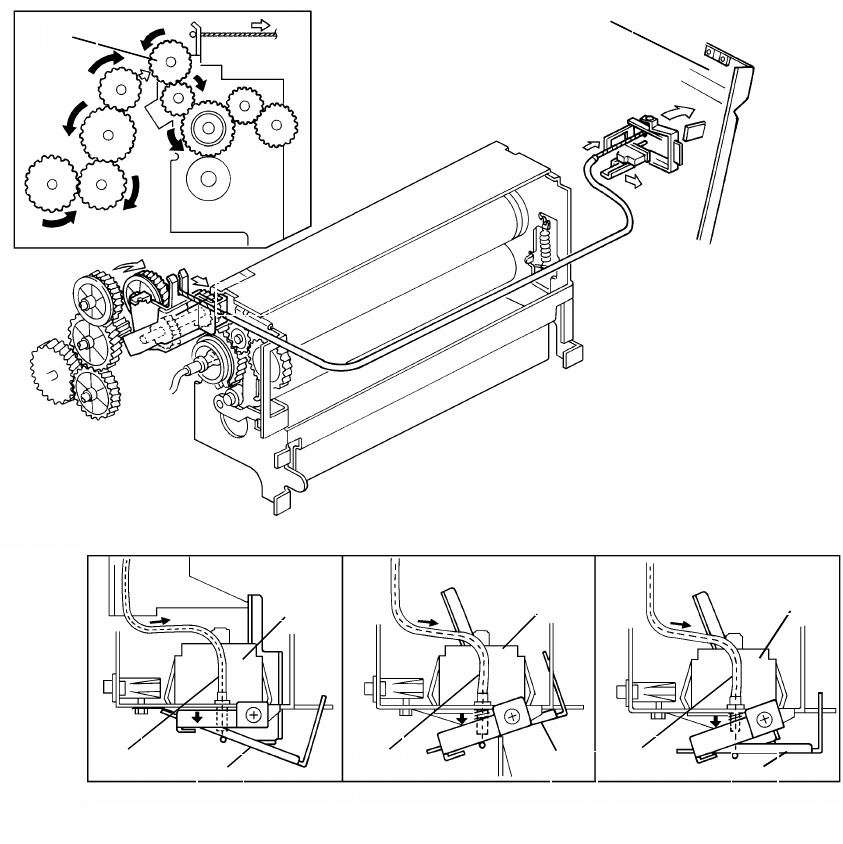

The fusing unit drive release mechanism automatically disengages the fusing
unit drive gear [A] when the front cover [B] or the exit cover is opened. This
allows the fusing unit drive gear to rotate freely so that misfed paper can be
easily removed.
When the front cover and/or the exit cover is opened, the actuator plate [C]
pulls release wire [D] and the fusing unit drive gear is disengaged.
The actuator plate also releases the cover safety switch [E] removing all
power from the copier and the optional peripherals.
[A]
[A]
[B]
[D]
[D] [D]
[C]
[C]
[C]
The front cover is opened.
The exit cover is opened.
The front cover and exit
cover are opened.
[E]
[E]
[E]
1 December 1990
2-71
