3. DEVELOPMENT AND TONER SUPPLY

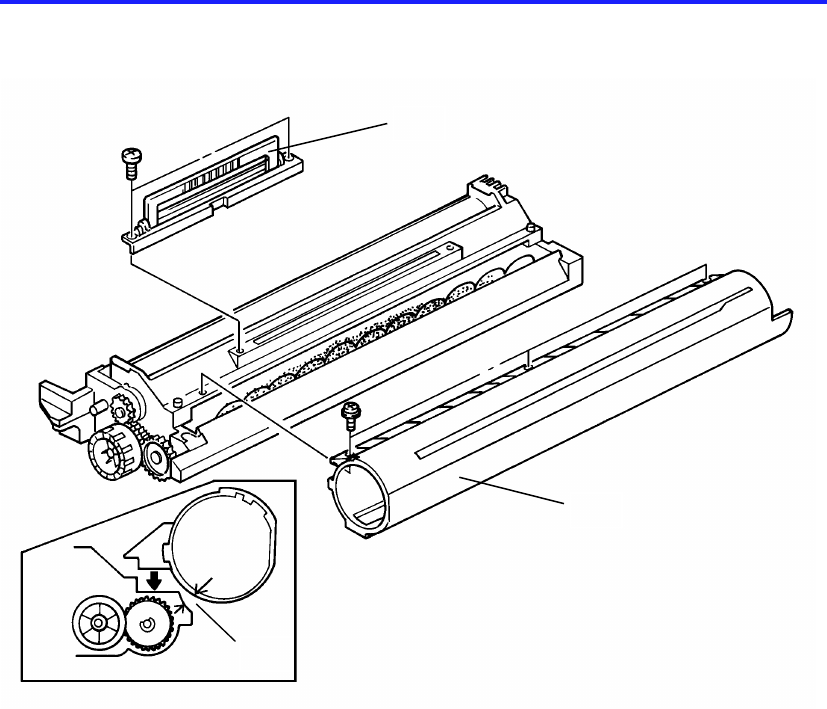

3.1 TONER TANK REMOVAL
1. Take out the development unit.
2. Remove the filter bracket [A] (2 screws).
3. Remove the toner supply unit [B] (3 screws).
NOTE: Make sure that there is no gap [C] between the toner supply unit and
the development unit. (See illustration.)
[A]
[B]
[C]
1 December 1990
5-26
