Maintenance and Repair

6-7

Part 1105120-01

E 2013 Nordson Corporation

Reflector Replacement

Two types of reflectors may be used in the lamphead: Flood or Focus.

Each type uses different retaining brackets and supports.

Use these outlines to find out what kind of reflectors and supports are

installed in your lamphead.

2.1 Focus

3.1 Focus

Flood

Scale 1:1

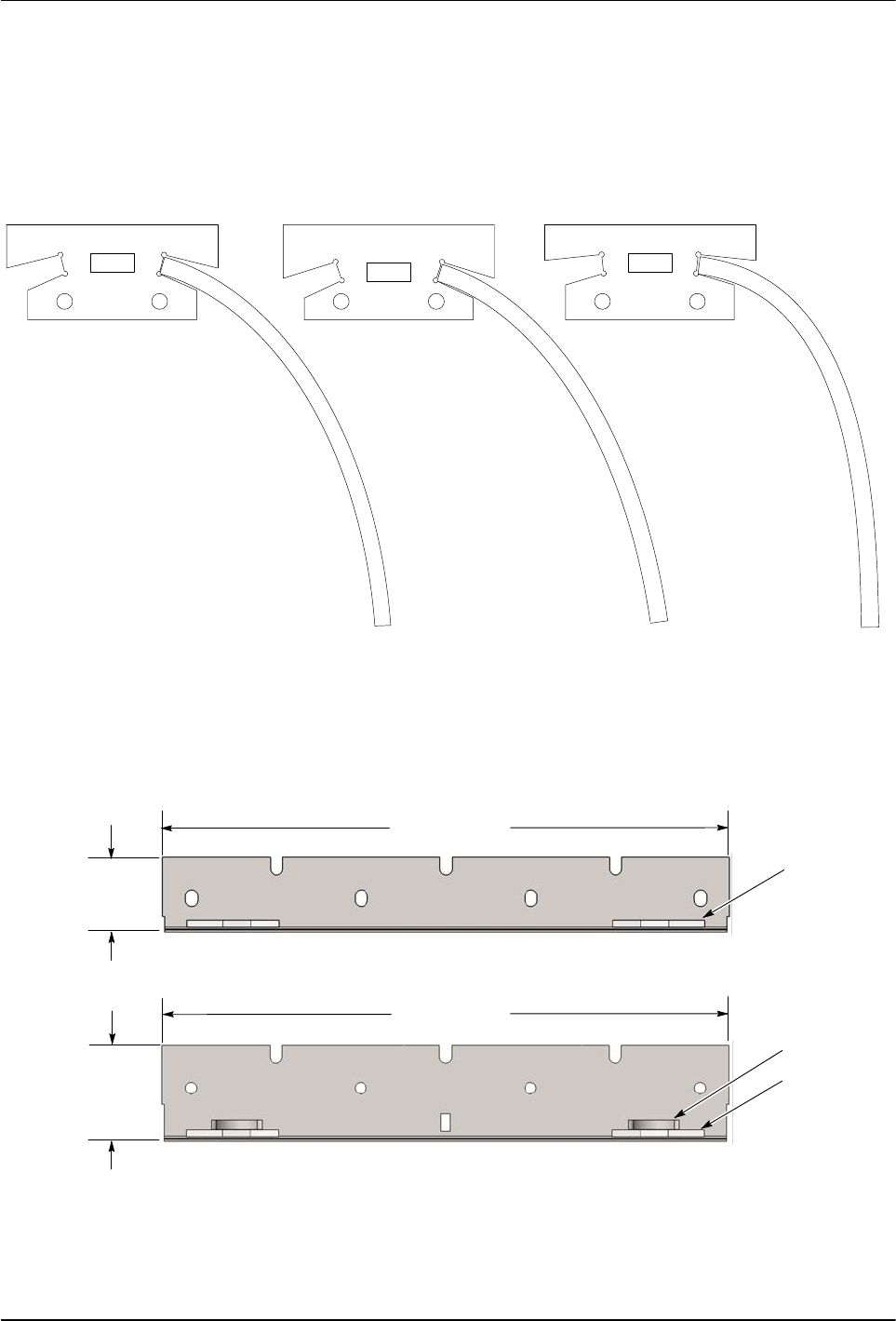

Figure 6-5 Reflector and Reflector Support Outlines

Different retaining brackets are used to secure the reflectors in place in the

lamphead. Figure 6-6 illustrates the differences in their retaining brackets.

Note that two retainers are stamped into the flood bracket.

Focus Reflector Bracket

Flood Reflector and Bracket

32.732 mm

(1.28 in.)

253.8 mm

(9.99 in.)

42.338 mm

(1.66 in.)

253.8 mm

(9.99 in.)

Retainers

Springs

Figure 6-6 Reflector Brackets
