SPEC No.

LC99213A

MODEL No.

LM10V332

PAGE

16

(Response Measurement)

Ta = 25 ℃

In dark room

　　

１

TOPCON BM7 + quartz fiber

(Measuring spot size :φ10 mm, Measuring Field : 2°)

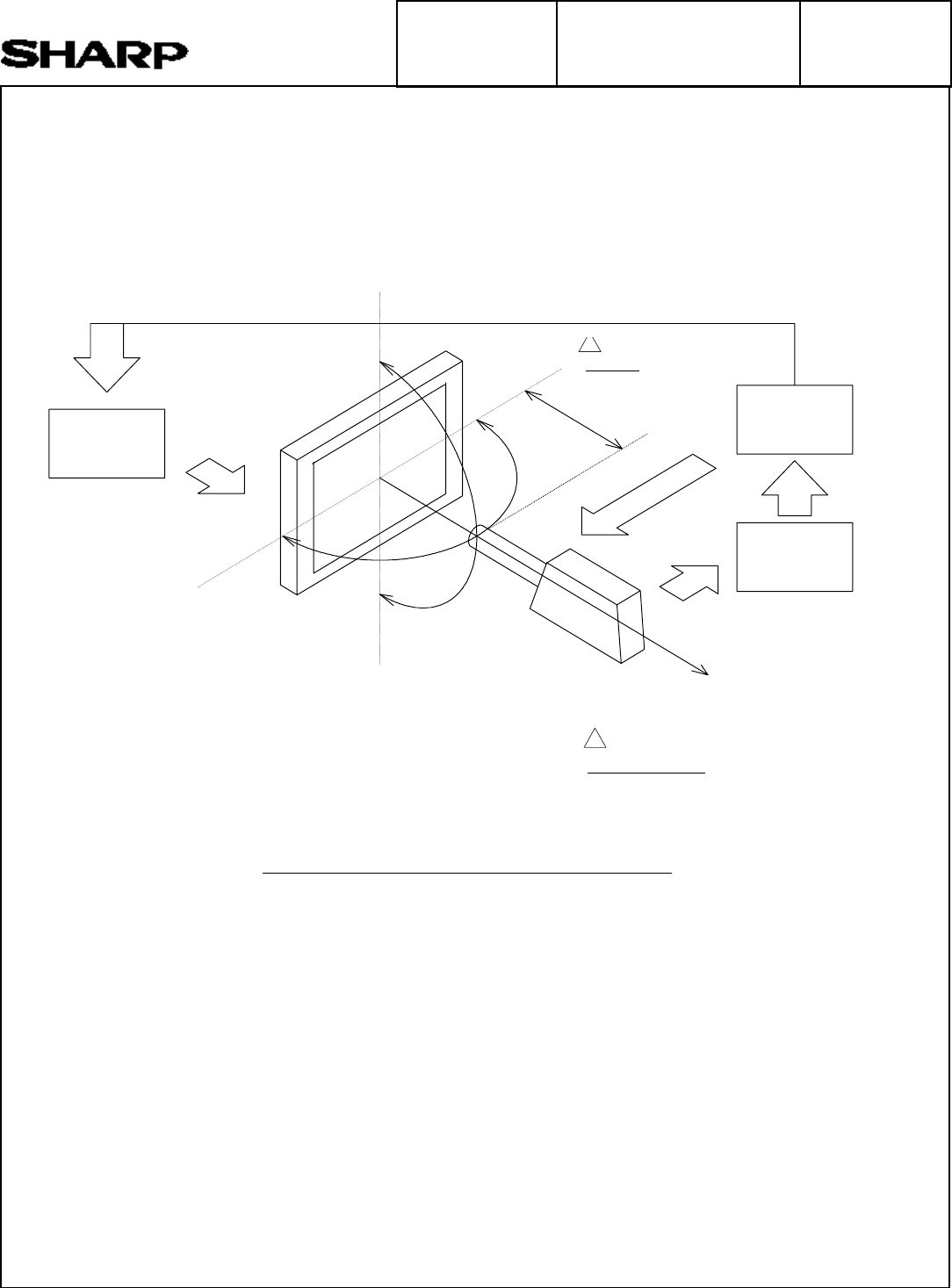

Fig. 7 Optical Characteristics Test Method Ⅱ

LCD Control

circuit

Computer

A/D

Converter

θx(-)

θy(-)

θy(+)

θx(+)

　　

１

85

mm

350mm

normal

θx=θy= 0°

LCD Module
