SPEC No.

LC99213A

MODEL No.

LM10V332

PAGE

17

τr : Rise time

τd : Decay time

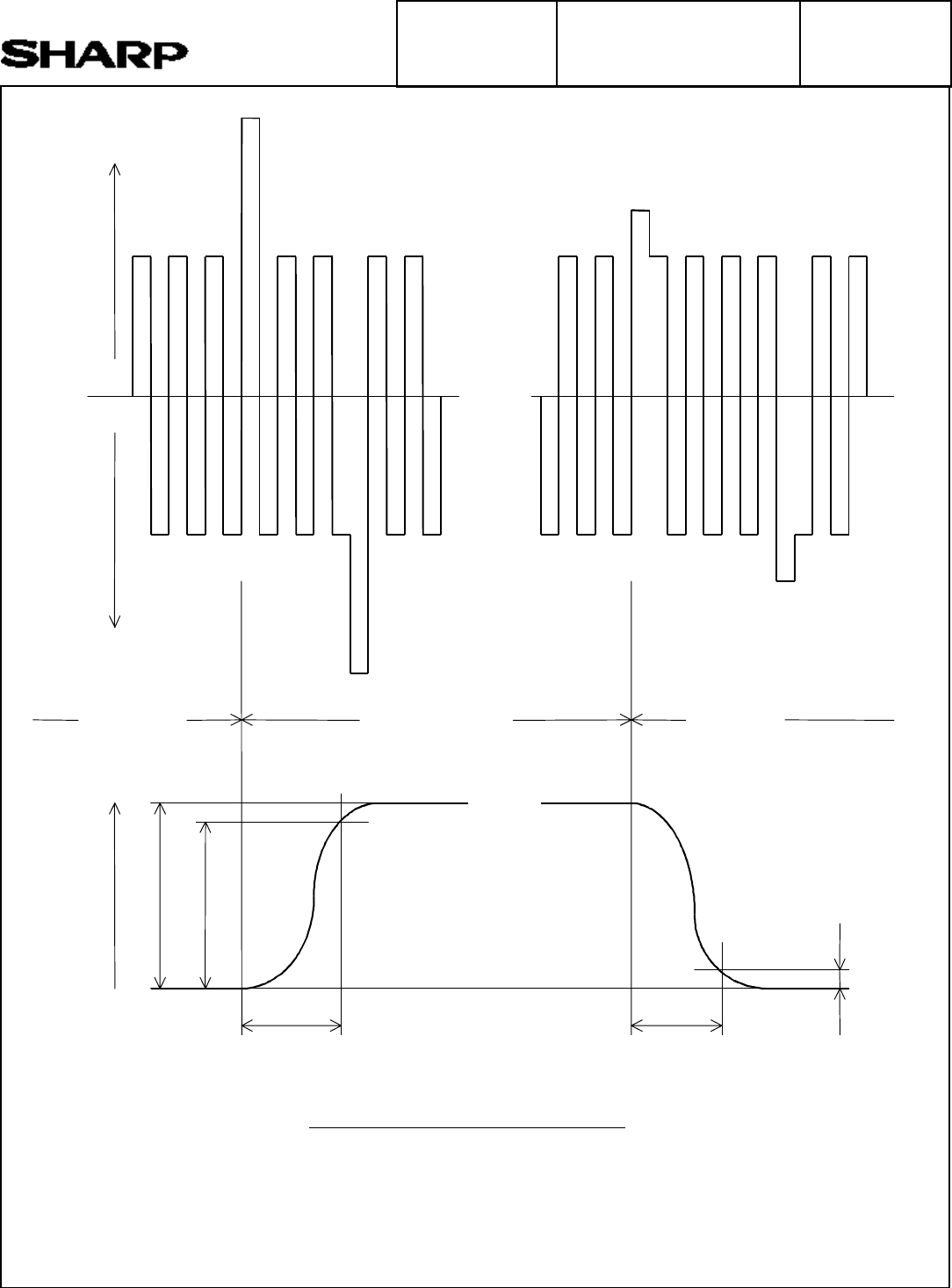

Fig.8 Definition of Response time

Non-select

waveform

Select waveform

[Responce waveform]

100 %

90 %

τ

r

τ

d

10 %

Non-select

waveform

1/244 Duty Ratio

[Drive waveform]

Photo detector output Driving voltage
