Section-5 Maintenance

October 17, 2013

5‐46

WARNING:Disconnectprimarypower priortoservicing. 888‐2693‐004

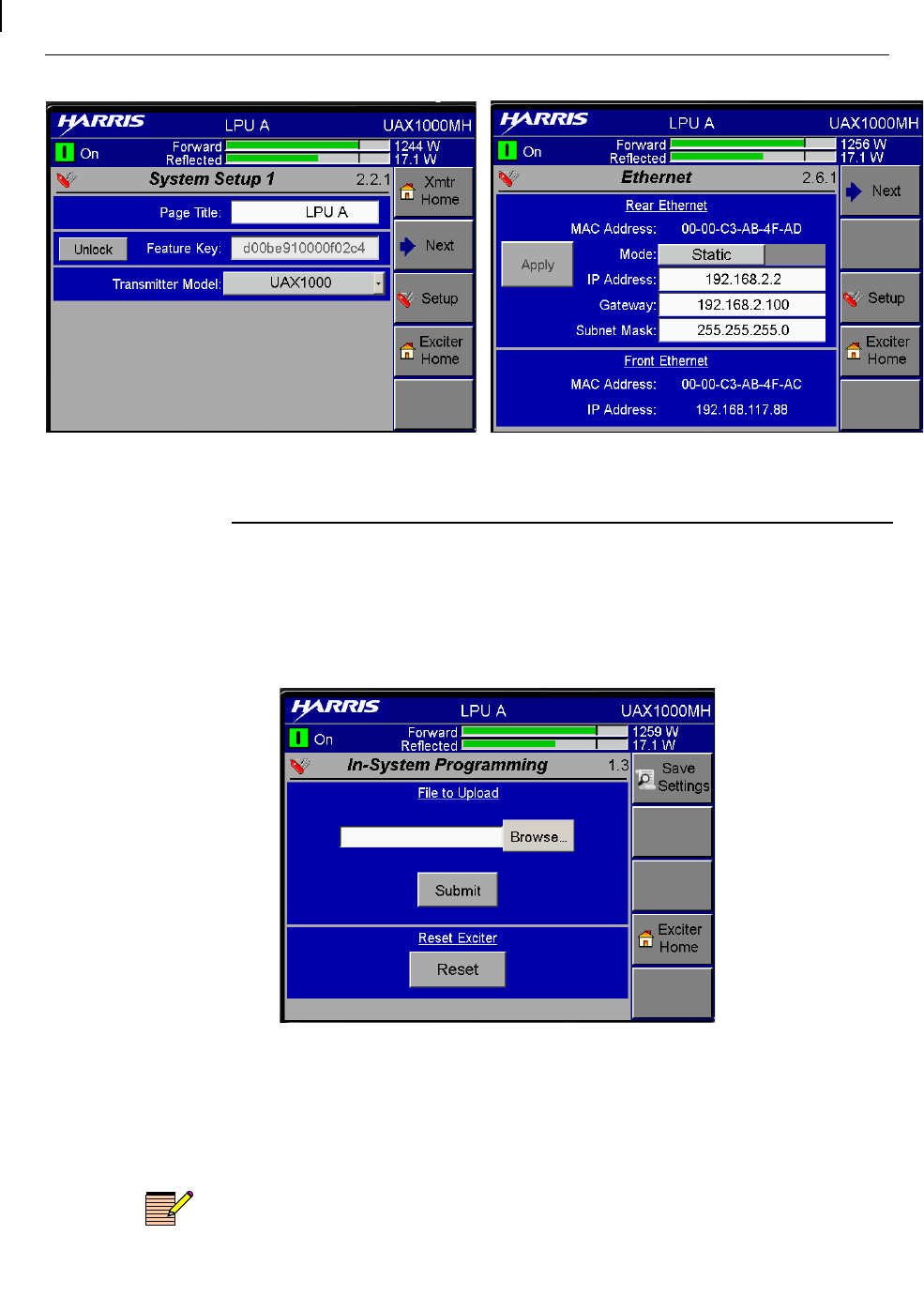

Figure 5-28 System Setup Screen - left Remote Comm Ethernet Screen - right

5.9.8 LPUISP(In‐SystemProgramming)

UpdatingtheLPUsoftwareisaccomplishedbyaccessingtheISPscreenviawebbrowserPCconnection.Connection

totheLPUviathefrontEthernetport isrecommended.TheLPUsoftwarefilemustbestoredonthe PCbefore

commencingtheupdateprocedure.UsethefollowingproceduretoupdatetheLPUsoftware:

STEP 1

RefertoMainSetupscreenFigure3‐30onpage3‐30.

STEP 2 SelectsoftkeyISP.

Figure 5-29 ISP Screen

STEP 3

UsetheBrowsebutton(showninFigure5‐29)tolocateandselectthenew

softwarefi

le,selecttheSubmitsoftkeytoactivatetheupload.LPUsoftware

filestypicallyhavea.s19extensionandthemodulationtypeisidentifi edin

thefilename.ForexampleAPEXM2X_DVB_REVR.s19wouldbeanLPU

softwarefileforDVBTmodulationandtherevisionlevelisR.Thescreenin

Figure5‐30(le

ft)willappearwhilethefileisuploading.

Note

The number of bytes received value should be increasing during the file upload.
