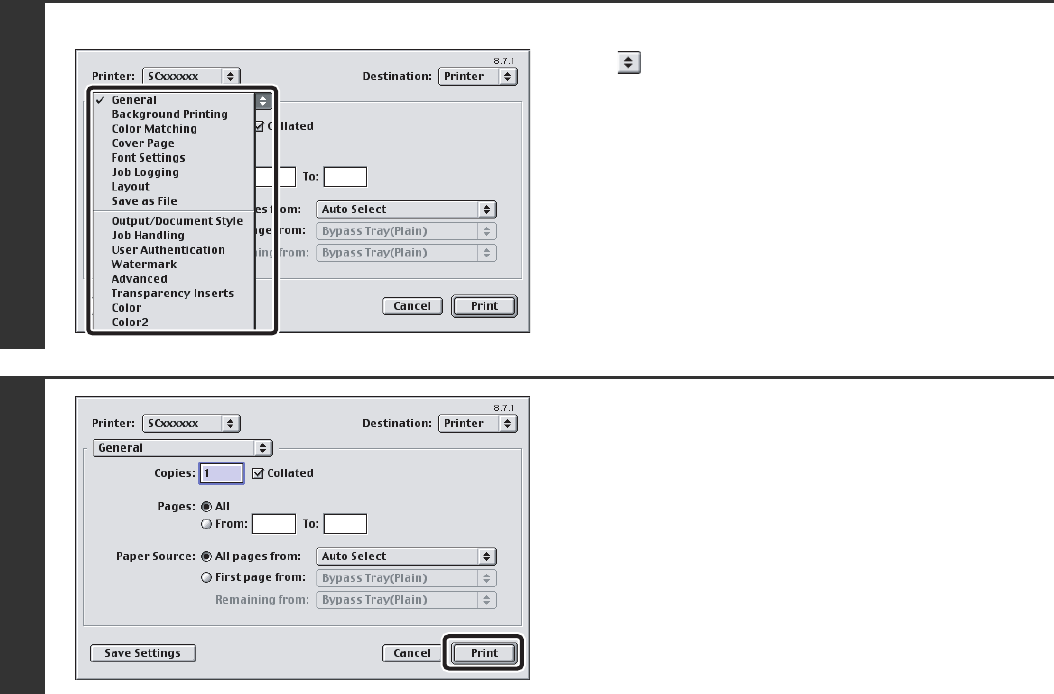

Select print settings.
Click next to [General] and select the settings that you
wish to configure from the pull-down menu. The
corresponding setting screen will appear.
4
Click the [Print] button.
Printing begins.
