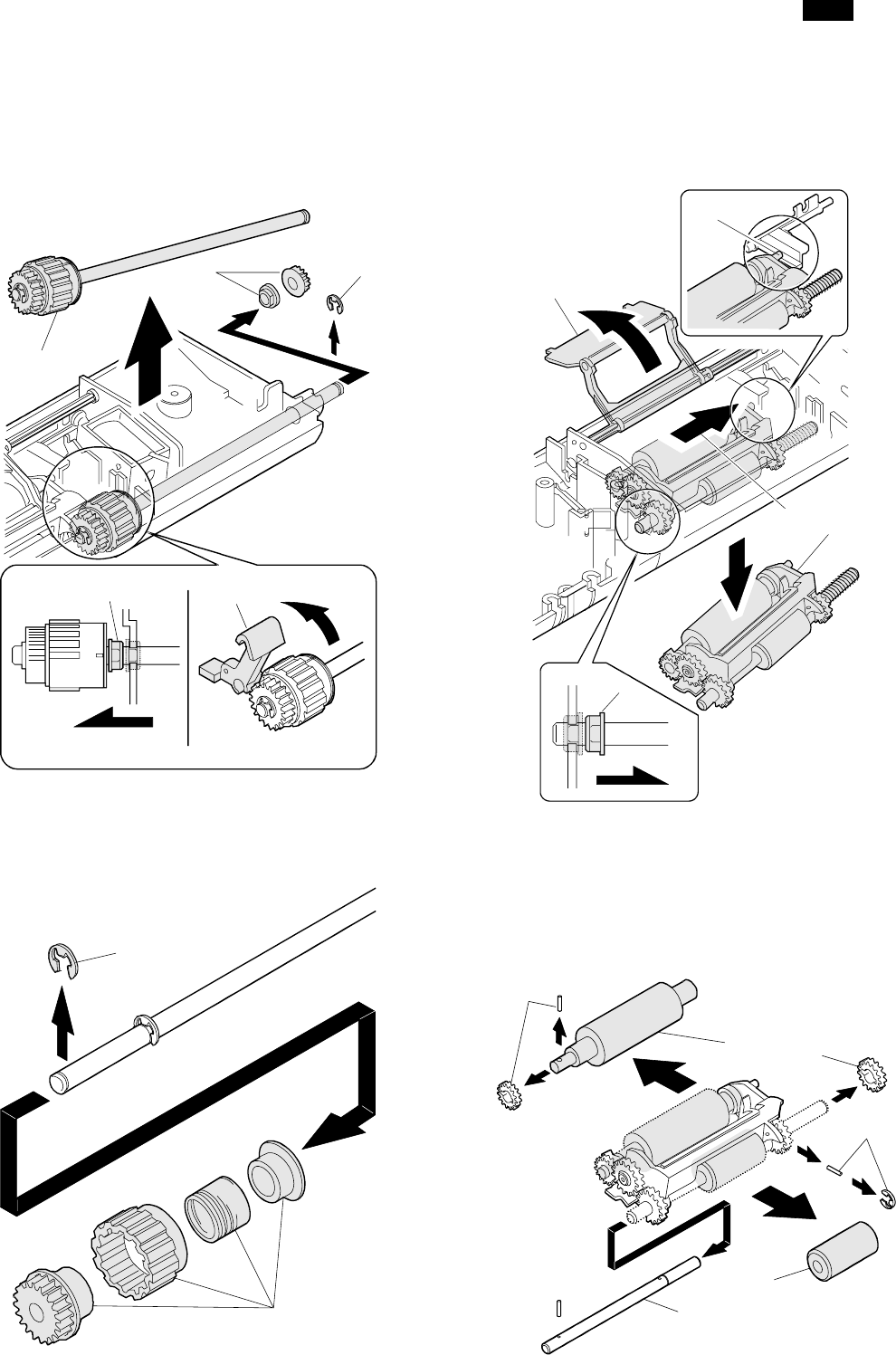

H. Clutch

(1) Remove the clutch unit.

1) Remove the E-ring.

2) Remove the pulley and the bushing.

3) Slide the bushing in the arrow direction.

4) Lift the clutch pawl.

5) Remove the clutch unit.

(2) Remove the clutch

1) Remove the E-ring.

2) Remove the parts.

I. Manual paper feed roller, pickup roller

(1) Remove the pickup unit.

1) Lift the paper stopper.

2) Slide the takeup roller unit.

3) Slide the bushing in the arrow direction.

4) Remove the takeup roller.

NOTE: When reassembling, hang the convex portion of the roller unit

on the solenoid arm.

(2) Remove the Manual paper feed roller, pickup roller.

1) Remove the parts.

2) Remove the manual paper feed roller.

3) Remove the pickup roller.

4) Remove the parts.

AR-F152

7 – 26
