(2) Manual multi paper feed operation

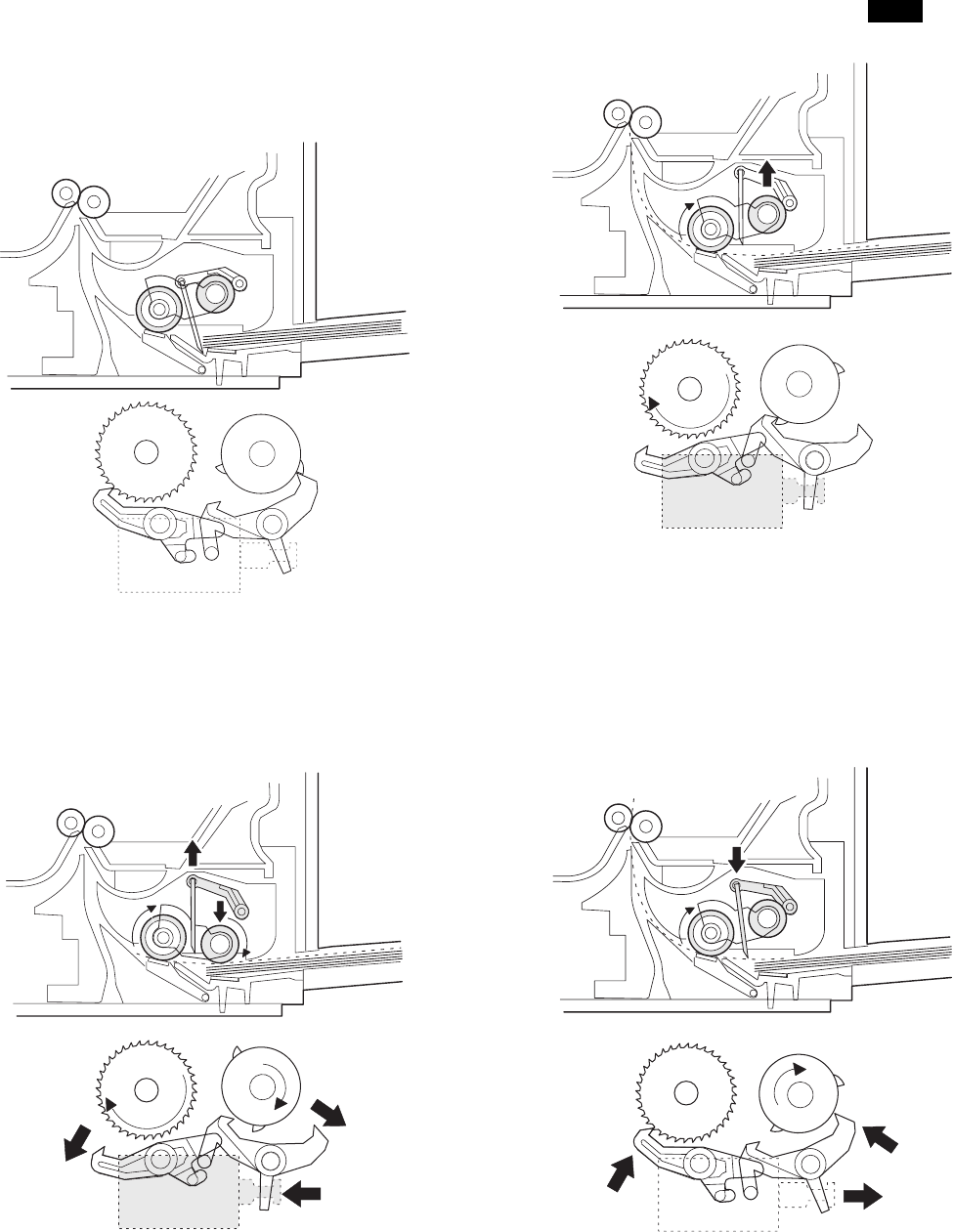

1) Before paper feed operation, the manual paper feed solenoid

(MPFS) is turned OFF as shown in the figure below.

2) When the PRINT button is pressed, the manual paper feed

solenoid (MPFS) turns on to disengage the manual paper feed latch

A from the manual paper feed clutch sleeve A, rotating the manual

paper feed roller and the manual take-up roller. At the same time,

the manual paper feed stopper opens and the manual take-up roller

is pressed to the surface of the paper to start paper feeding.

3) When pawl C of the manual paper feed clutch sleeve is hung on the

manual feed latch, the manual feed stopper falls and the manual

take-up roller rises. At that time, the manual paper feed roller is

rotating.

4) The lead edge of the transported paper is pressed on the resist

roller by the transport roller. Then the paper is stopped temporarily

to make synchronization with the lead edge of the image on the

OPC drum.

The operations hereinafter are the same as the paper feed opera-

tions from the tray. (Refer to A-5 ∼ 8.)

5) The solenoid turns off to close the gate and return to the initial

state.

(3) Conditions of occurrence of paper misfeed

a. When the power is turned on:

PPD or POD is ON when the power is turned on.

b. Copy operation

a. PPD1 jam 1) PPD1 does not turn off within 4 sec

after turning on the resist roller.

b. PPD2 jam 1) PPD2 is off immediately after turning on

the resist roller.

2) PPD2 does not turn off within 1.2 sec

after turning off the resist roller.

MPFS

AR-F152

6 – 6
