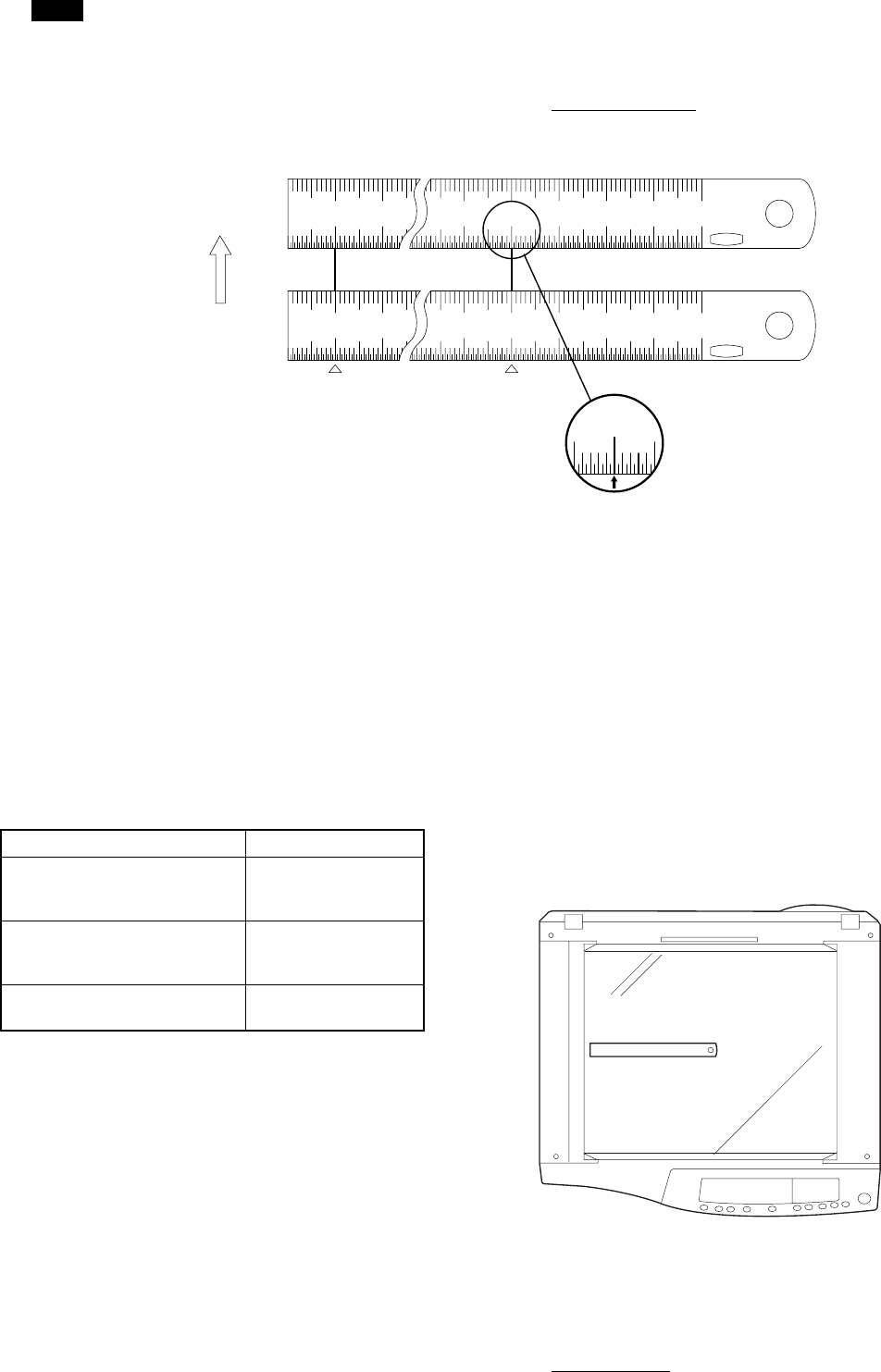

4) Measure the length of the copied scale image. 5) Calculate the main scanning direction magnification ratio.

Main scanning direction magnification ratio

Copy image dimensions

Original dimension

× 100 (%)

100 110 120 130

150

140

1/2mm

JAPAN

HARDDENCD

STAINLESS

Shizuoka

100

110

120 130

150

140

1/2mm

JAPAN

HARDDENCD

STAINLESS

Shizuoka

110

10 20

(When a 100mm scale is used as the original.)

Paper feed

direction

Reference

Comparison point

Original (Scale)

Copy

6) Check that the copy magnification ratio is within the specified

range. If it is not within the specified range, perform the following

procedures.

7) Execute SIM 48-1 to select the main scanning direction copy

magnification ratio adjustment mode.

To select the adjustment mode, use the copy mode select key.

In the case of the automatic adjustment, when the PRINT switch is

pressed, the mirror base unit moves to the white plate for shading

to scan the width of the reference line, calculating the correction

value and displaying and storing this value.

After execution of the automatic adjustment, go out from the simula-

tion mode and make a copy to check the magnification ratio.

If the magnification ratio is not in the specified range (100 ±1.0%),

manually adjust as follows.

Adjustment mode Lighting lamp

Main scanning direction auto

copy magnification ratio

adjustment

Auto exposure lamp

Main scanning direction manual

copy magnification ratio

adjustment

Manual exposure lamp

Sub scanning direction copy

magnification ratio adjustment

Photo exposure lamp

8) Set the adjustment mode to Manual with the copy mode select

key.

9) Enter the new set value of main scanning direction copy mag-

nification ratio with the copy quantity set key, and press the

COPY button.

10) Change the set value and repeat the adjustment until the ratio

is within the speoified range.

When the set value is changed by 1, the magnification ratio is

changed by 0.1%.

(3) Sub scanning direction copy magnification ratio

a. Note

Before performing this adjustment, the following adjustments must

have been completed. If not, this adjustment cannot be performed

properly.

●

Image distortion adjustment

●

Must be installed to the lens unit reference position.

b. Cases when the adjustment is required

1) When the lens and the mirror unit are disassembled or the part

is replaced.

2) When the scanner unit drive section is disassembled or the part

is replaced.

3) When the main PWB is replaced.

4) When the EEPROM in the main PWB is replaced.

5) When “U2” trouble occurs.

6) When the copy image distortion adjustment is performed.

c. Necessary tools

●

Screwdriver (+)

●

Scale

d. Adjustment procedure

1) Set the scale on the document table as shown below. (Use a

long scale for precise adjustment.)

2) Set the copy magnification ratio to 100%.

3) Make a copy on A4 or 8

⁄

″ × 11″ paper.

4) Measure the length of the copied scale image.

5) Calculate the sub scanning direction copy magnification ratio.

Sub scanning direction copy magnification ratio

Copy image dimension

Original dimension

× 100 (%)

AR-F152

8 – 5
