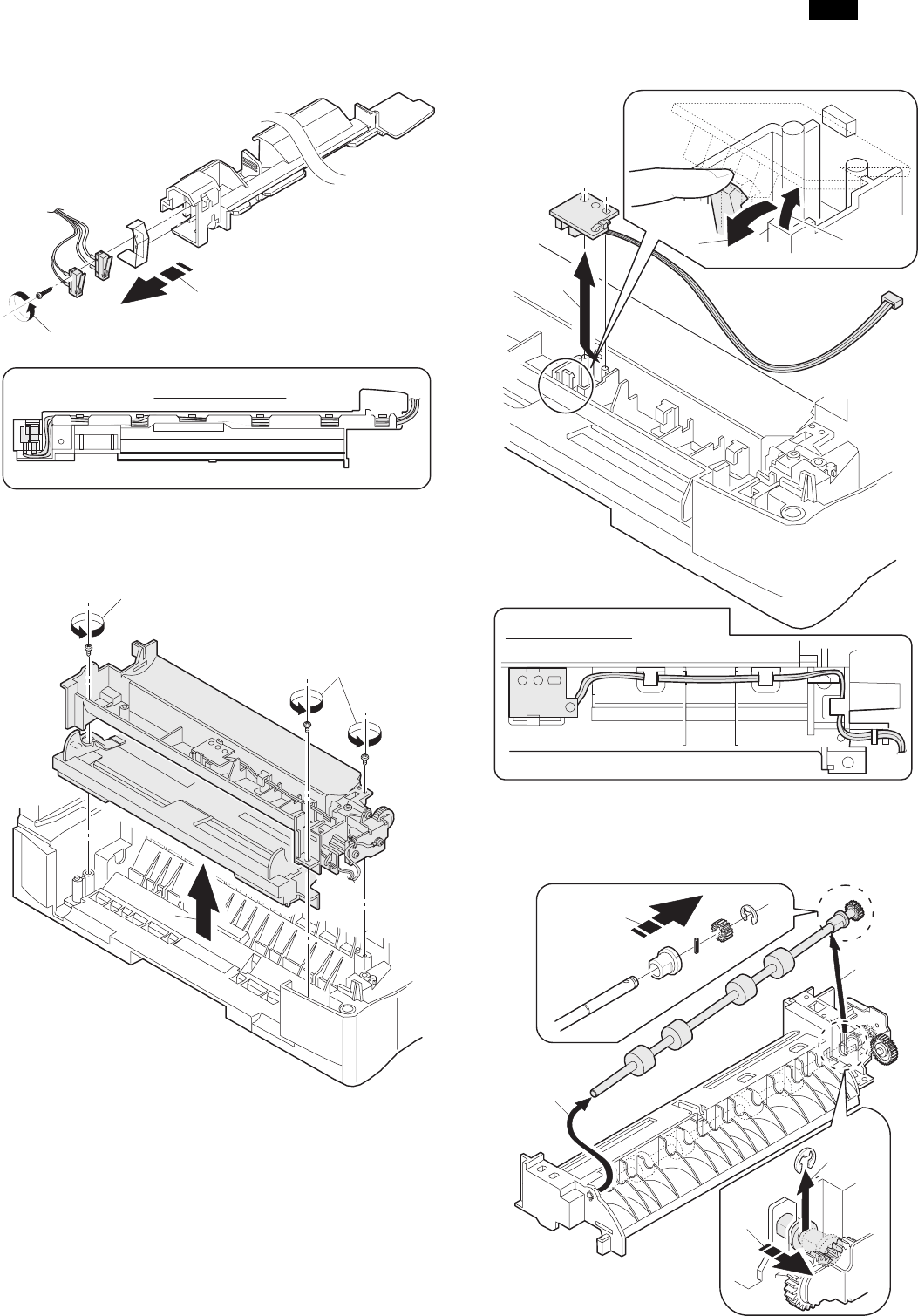

(2) Remove the screw and remove the side door detection unit.

(3) Remove three screws and remove the single manual feed upper

frame.

(4) Remove the PPD1 sensor PWB.

(5) Remove the E-ring and remove the manual paper feed transport

roller.

1)

2)

Back

Wire treatment

1)

2)

1)

3)

1)

2)

Wire treatment

3)

3)

4)

1)

2)

AR-F152

7 – 14
