2) Set the test chart so that the scale is positioned as shown below,

in the S-D mode and the D-S mode.

3) Execute simulation 50-18 to make a copy and check the front edge

image loss at the area where the scale is printed.

Adjust the setting so that the front edge image loss is less than 4.0

mm in the R-SPF mode.

An increase of 1 in setting represents an increase of 0.1 mm in

image loss.

B. Adjusting trailing edge void in duplex copy mode

This is the adjustment of the first surface printing mode (rear end void)

in duplex copying.

In a duplex copying operation, the paper is delivered starting from the

rear end of the first printing surface. It is therefore necessary to make

a void area at the rear end on the first printing surface to prevent paper

jam at the fusing part.

There are two adjustment modes:

1) Image cut rear end void quantity (R-SPF) 50-19(AE)

The size (length) of a document read from the R-SPF is detected,

the image at the trailing edge of the first printing surface is cut to

make a void area. (The adjustment of void quantity at the time

when the cassette paper size is not recognized.)

2) Paper trailing edge void quantity 50-19 (TEXT)

This adjustment is made when the cassette paper size is recog-

nized. The trailing edge void quantity can be adjusted by changing

the trailing edge image laser OFF timing.

The paper void quantity should be first adjusted before the image cut

trailing edge void quantity (R-SPF) is adjusted.

(Adjustment procedure)

(1) Paper trailing edge void quantity

1) Preparing test chart (Draw a scale at the rear end of one side of

a sheet of A/4 white paper or letter paper)

2) Set the test chart on the document glass as shown below.

3) Using the user simulation [18], set the paper size of the first cas-

sette.

Letter paper: 4

A4 paper: 3

4) Execute simulation 50-19 to turn on the TEXT lamp and make the

printing mode in OC-D mode.

Make a copy of the test chart to check the void area of the scale

on the image.

Adjust the setting so that the void area is 4 - 5 mm.

An increase in 1 of setting represents 0.1 mm in void area.

(2) Image cut trailing edge void quantity (R-SPF)

1) Set the test chart so that the scale is positioned as shown below.

2) Execute simulation 50-19 to turn on the AE lamp and make the

printing mode in the D-D mode.

3) Remove and reinsert the cassette.

NOTE: Make sure to carry out this step before making a copy

during this adjustment.

4) Make a copy and check the void area of the scale on the image.

Adjust the setting so that the void area is 2 - 4 mm.

An increase of 1 in setting represents an increase of 0.1 mm in

void area.

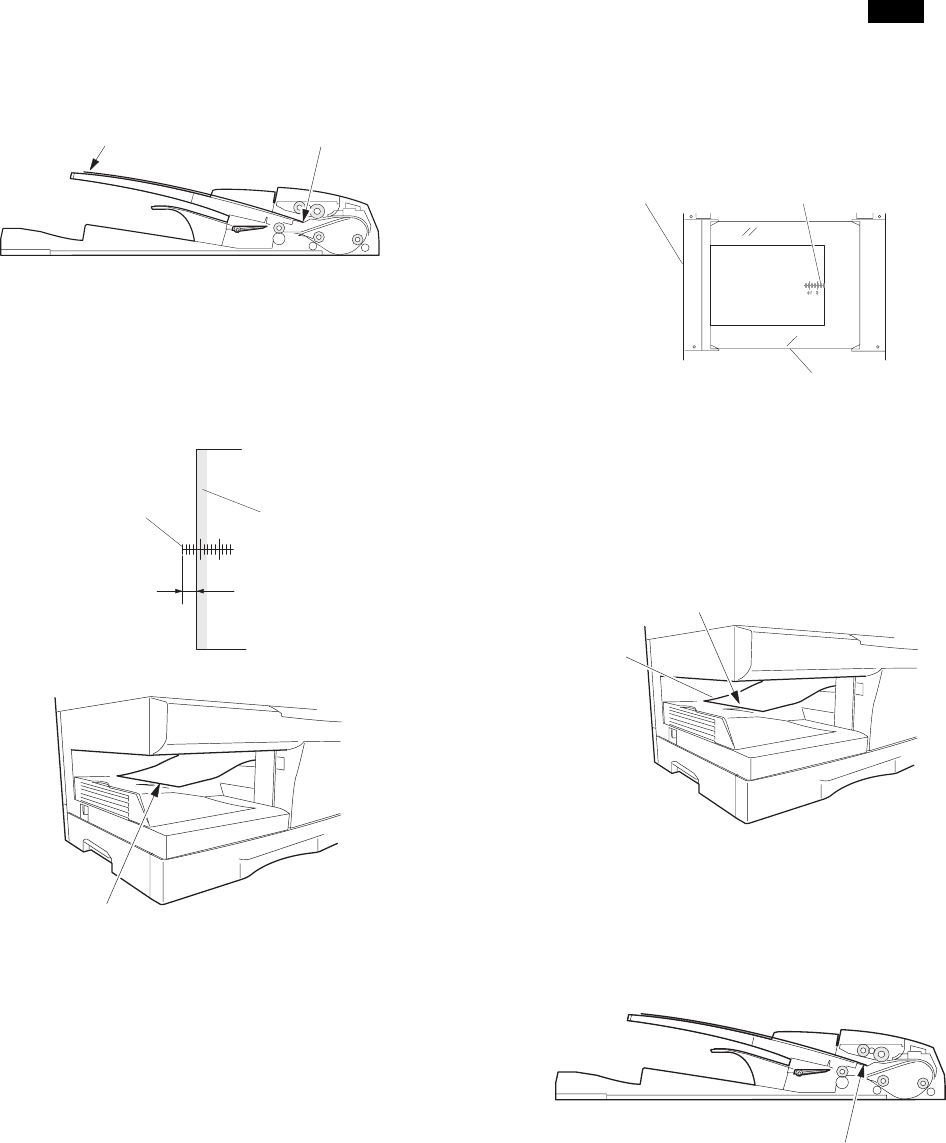

Scale (S-D mode) Scale (D-S mode)

510

The front edge of the

scale on test chart

Front edge of paper

Void area

less than 4 mm

2nd printing surface where scale is printed (lower side)

Document guide

The trailing edge has a scale

Table glass

Scale (D-D mode)

The trailing edge void on the first printing surface

is shown above.

Paper

Void position to be check

AR-F152

8 – 10
