MX-M182 DISASSEMBLY AND ASSEMBLY 10-6

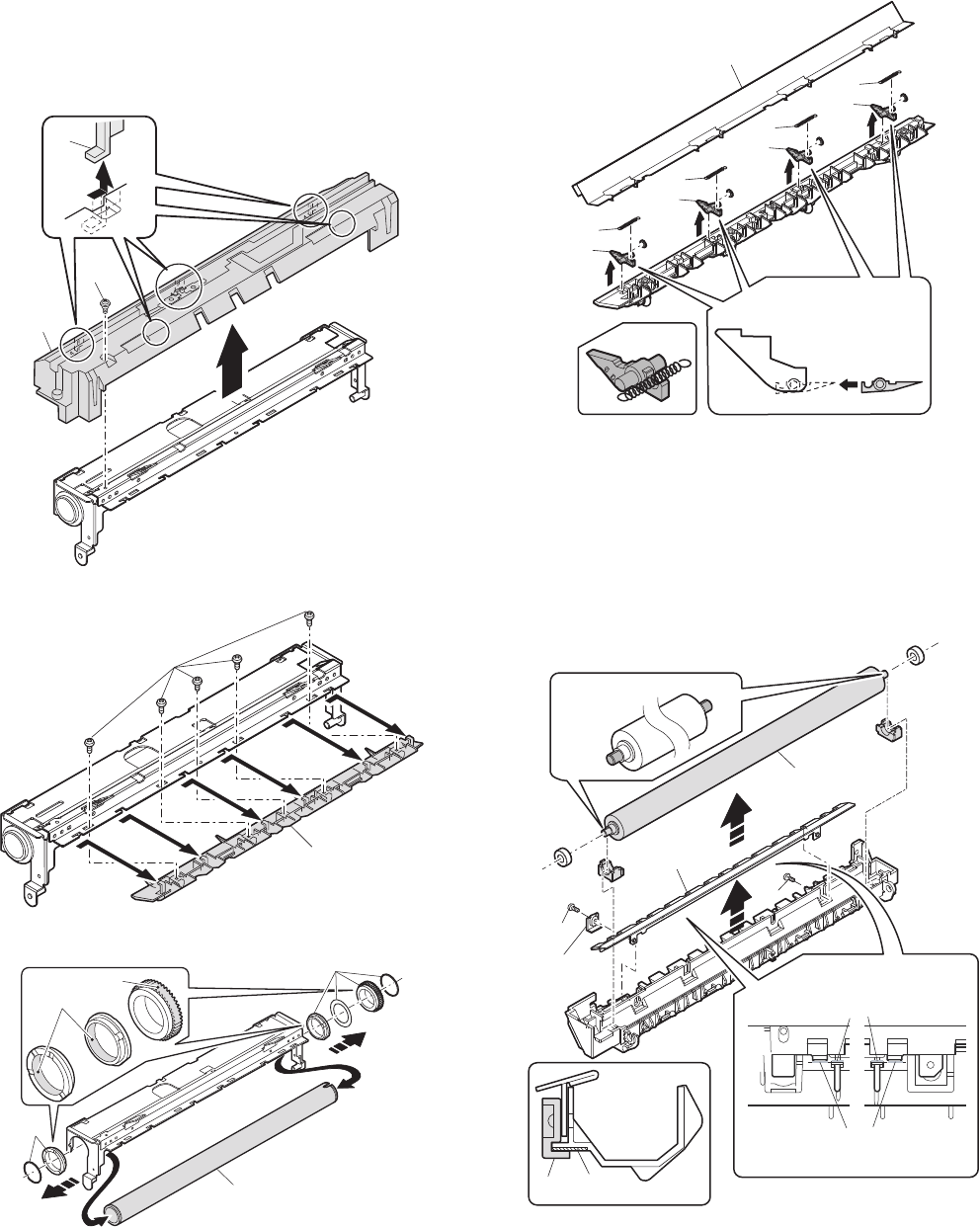

E. Upper heat roller

Disassembly: There are three pawls on the fusing cover. Remove the

screws and slide the fusing cover to the right to remove.



The heater lamp is fixed on the fusing cover with a

screw. Slide the fusing cover to the front and remove the

screw, then remove the heater lamp.

Note:It is grease (JFE552) application on a fusing frame metal plate part.

(Degree to thinly)

F. Separation pawl

G. Lower heat roller

Assembly: When assembling the fusing front paper guide (3),

temporarily fix the paper guide fixing plate with the screw so

that the paper guide fixing plate (2) is in contact with the

fusing lower frame bottom (A).



Align the edge (B) of the fusing front paper guide (3) with the

top (C) of the rib, and fix them securely with screws.

(1)

(3)

(2)

(1)

(2)

(1)

(2)

Grease(JFE552)

Floil(GU2)

(1)

(2)

(3)

(2)

(3)

(2)

(3)

(2)

(3)

(1)

(3)

(2)

(A)

(4)

Grease

(JFE552)

(C)

(B)
