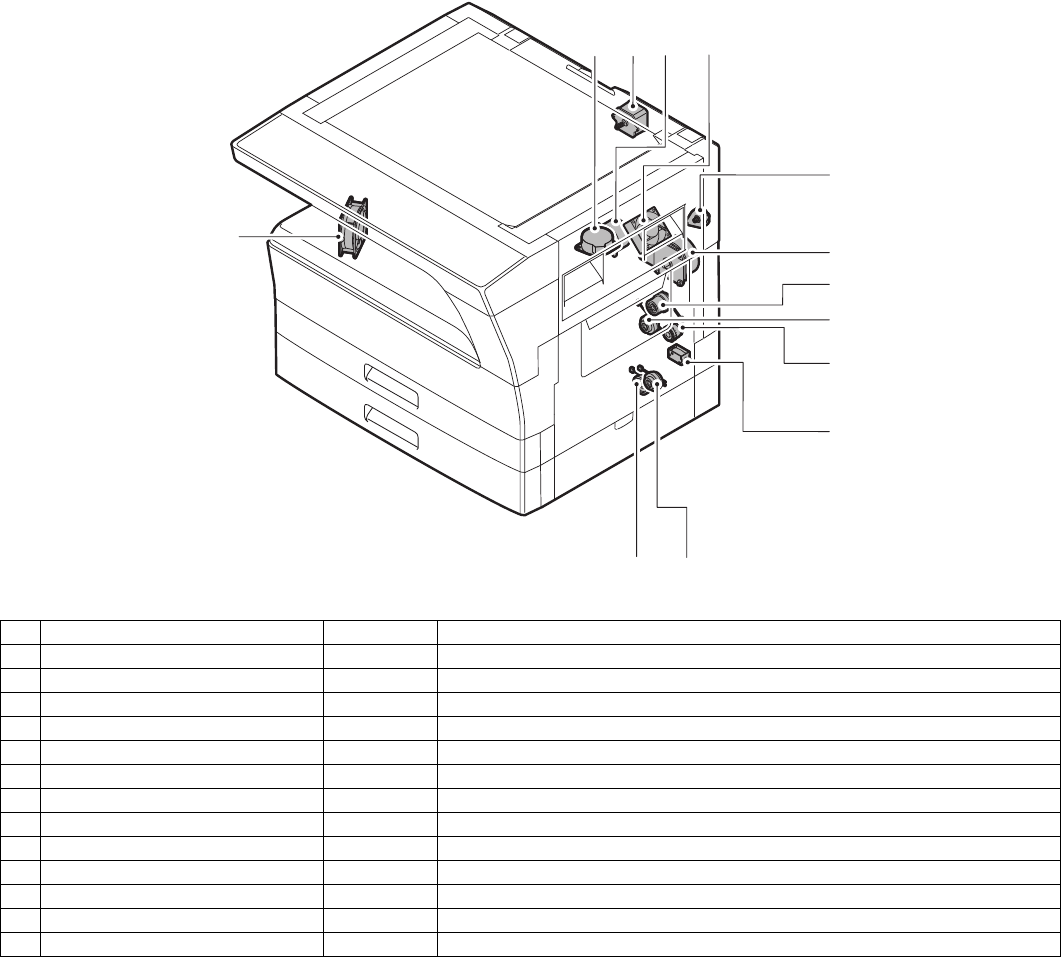

MX-M182 EXTERNAL VIEWS AND INTERNAL STRUCTURES 5-4
4. Motor, solenoid, clutch
No. Name Code Function operation
1 Mirror motor MRM Drives the optical mirror base (scanner unit).
2 Toner motor TM Toner supply
3 Duplex motor DPX Switchback operation and paper exit motor in duplex. (MX-M182D/M202D/M232D)
4 Main motor MM Drives the machine.
5 1st tray paper feed clutch CPSCL1 Drives the pick up roller
6 PS clutch RRC Drives the resist roller
7 Bypass tray paper transport clutch MPTC Drives the bypass tray paper transport roller.
8 Bypass tray paper feed solenoid MPFS Bypass tray paper feed solenoid
9 2nd tray transport clutch FSCL1 Drives the 2nd tray transport roller. (MX-M202D/M232D)
10 2nd tray paper feed clutch PSCL2 Drives the 2nd tray paper feed roller. (MX-M202D/M232D)
11 Exhaust fan motor PSFM Cools the inside of the machine.
12 Cooling fan motor VFM Cools the inside of the machine.
13 Shifter motor SFTM Drives the shifter motor.
